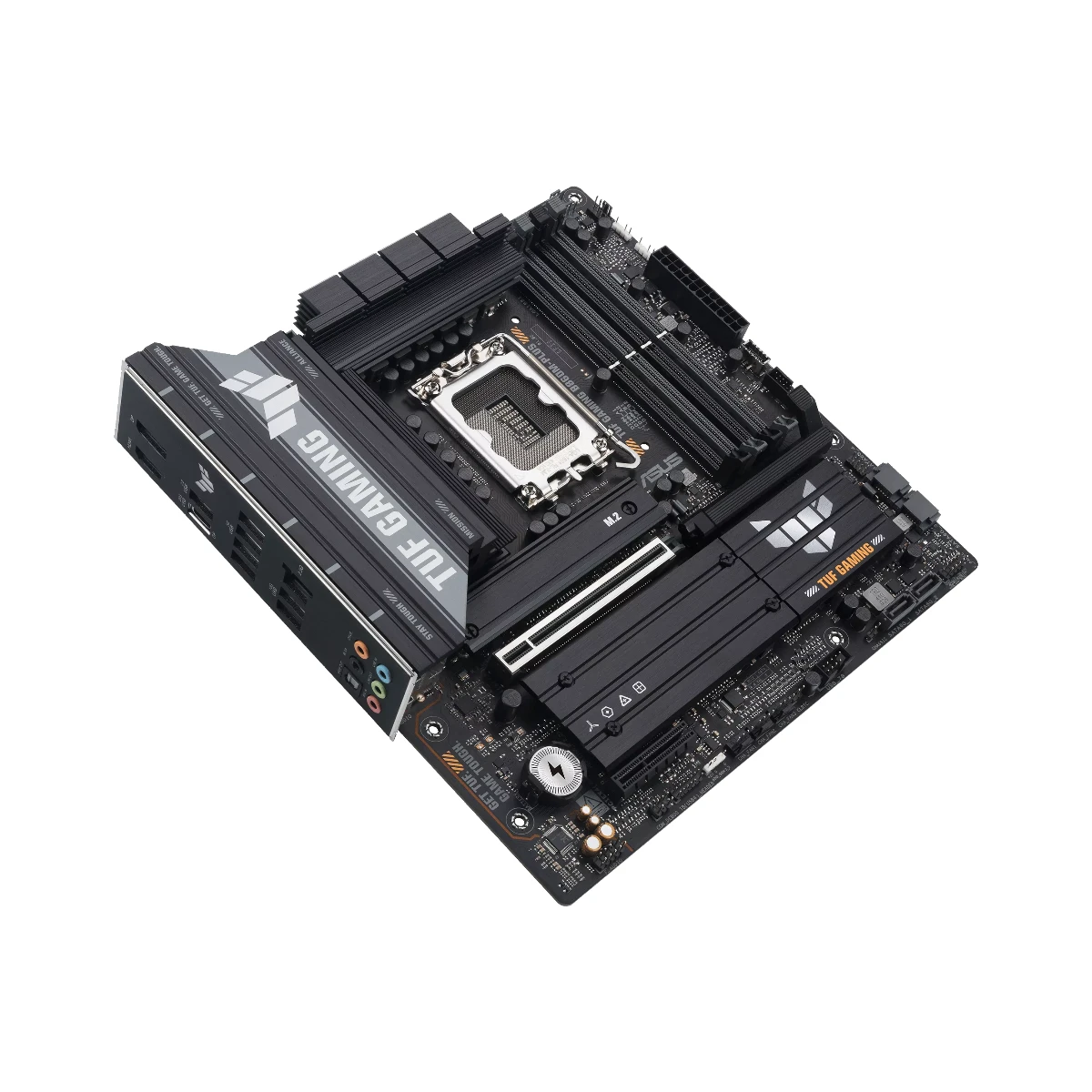

ASUS TUF GAMING B860M-PLUS LGA 1851 Micro-ATX Gaming Motherboard | 90MB1JW0-M0EAY0

ASUS TUF GAMING B860M-PLUS LGA 1851 Micro-ATX Gaming Motherboard is a high-performance motherboard engineered for gamers, content creators, and PC enthusiasts building powerful systems in Global. Equipped with the Intel® B860 Chipset and designed for Intel® Core™ Ultra Processors (Series 2), it delivers robust computing performance with Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, ensuring responsive and reliable performance for demanding applications and multitasking.

The motherboard supports 4 x DDR5 DIMM slots with a maximum memory capacity of 256GB, enabling ultra-fast memory speeds of up to 8800+ MT/s (OC). It offers Dual Channel Memory Architecture, Intel® XMP, and ASUS Enhanced Memory Profile III (AEMPIII) for optimized performance and overclocking potential.

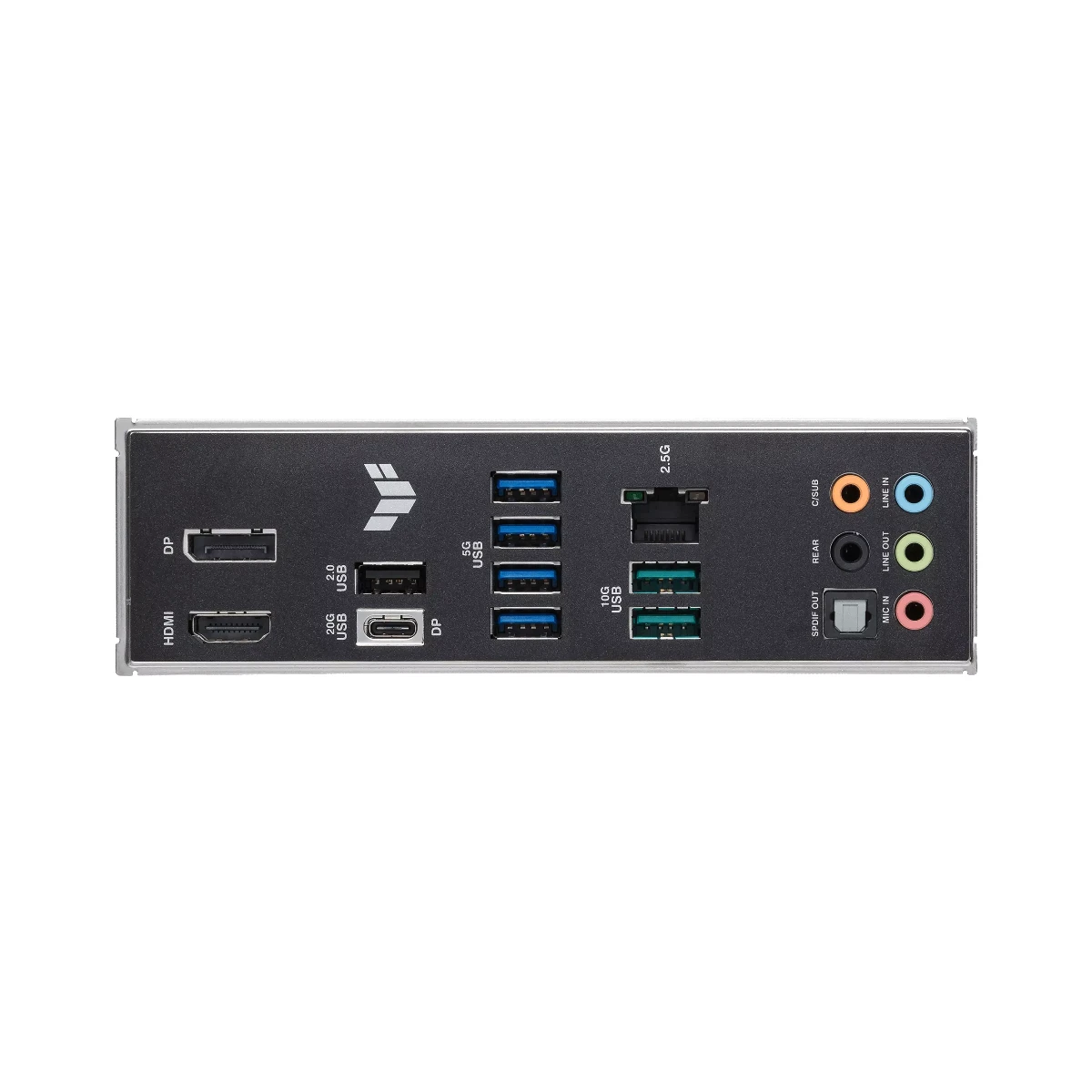

For graphics and expansion, it provides 1 x PCIe 5.0 x16 slot directly from the CPU and 1 x PCIe 4.0 x4 slot from the chipset, allowing high-speed GPUs, storage, or expansion cards. Integrated graphics include 1 x DisplayPort and 1 x HDMI™ port supporting 4K@60Hz, along with USB 20Gbps Type-C® for DisplayPort video output.

Storage options are comprehensive with 3 x M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4, plus 4 x SATA 6Gb/s ports. Intel® Rapid Storage Technology provides RAID 0/1/5/10 support for SATA drives, ensuring speed, redundancy, and data protection.

Networking and connectivity include Realtek 2.5Gb Ethernet, TUF LANGuard, multiple high-speed USB ports including USB 20Gbps Type-C, and Thunderbolt™ (USB4®) support. Audio is powered by Realtek 7.1 Surround Sound High Definition Audio CODEC with premium capacitors and S/PDIF output, delivering immersive sound quality.

Built with ASUS TUF PROTECTION including DIGI+ VRM, ESD Guards, SafeSlot, and overvoltage protection, the motherboard ensures durability and thermal efficiency. Additional features like M.2 heatsinks, VRM heatsinks, Pre-mounted I/O shield, SafeDIMM, and AURA Sync provide stability, cooling, and customization.

Compact yet powerful, the mATX Form Factor (9.6 x 9.6 inch) design makes it ideal for high-performance gaming builds in Global, combining speed, reliability, and next-generation technology.
