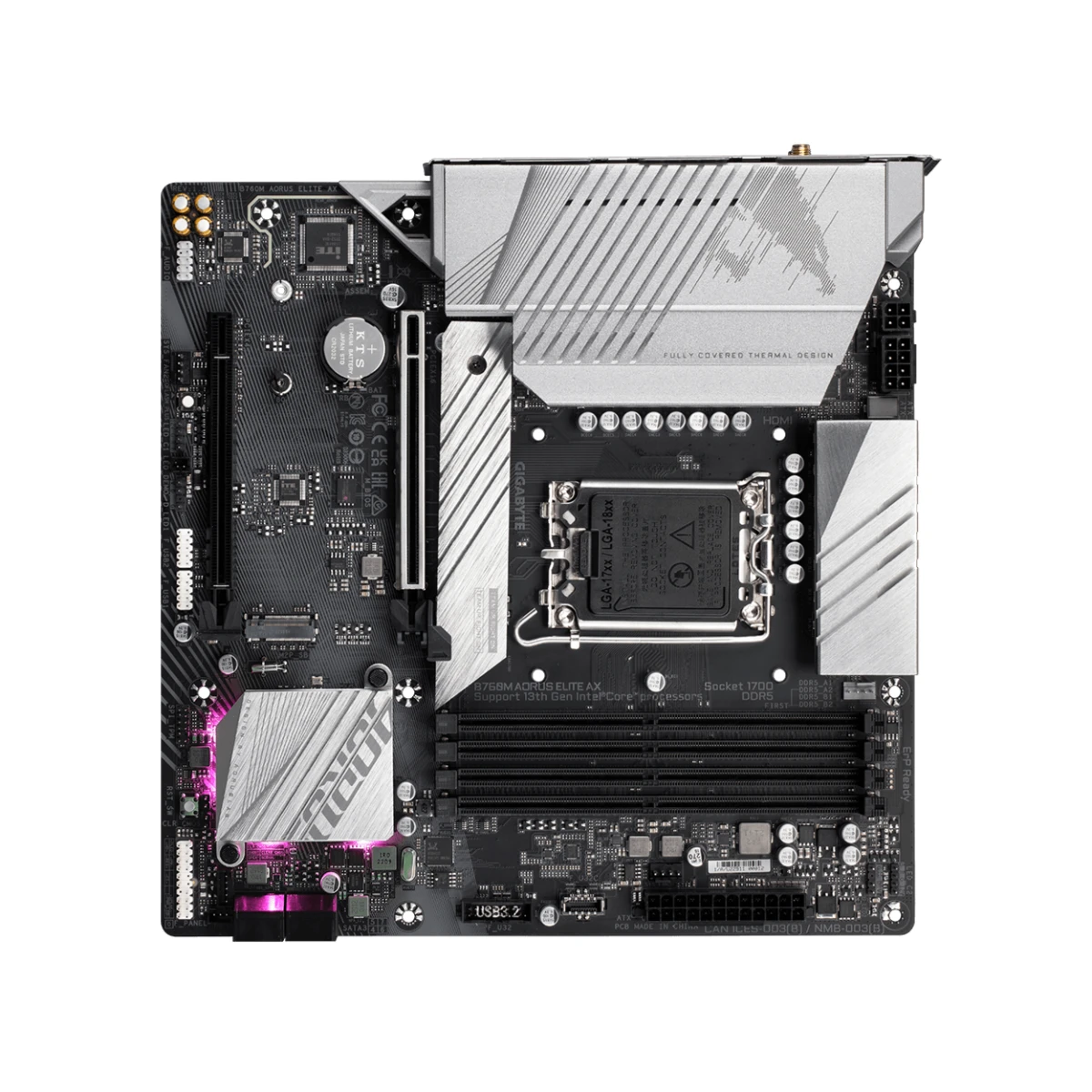

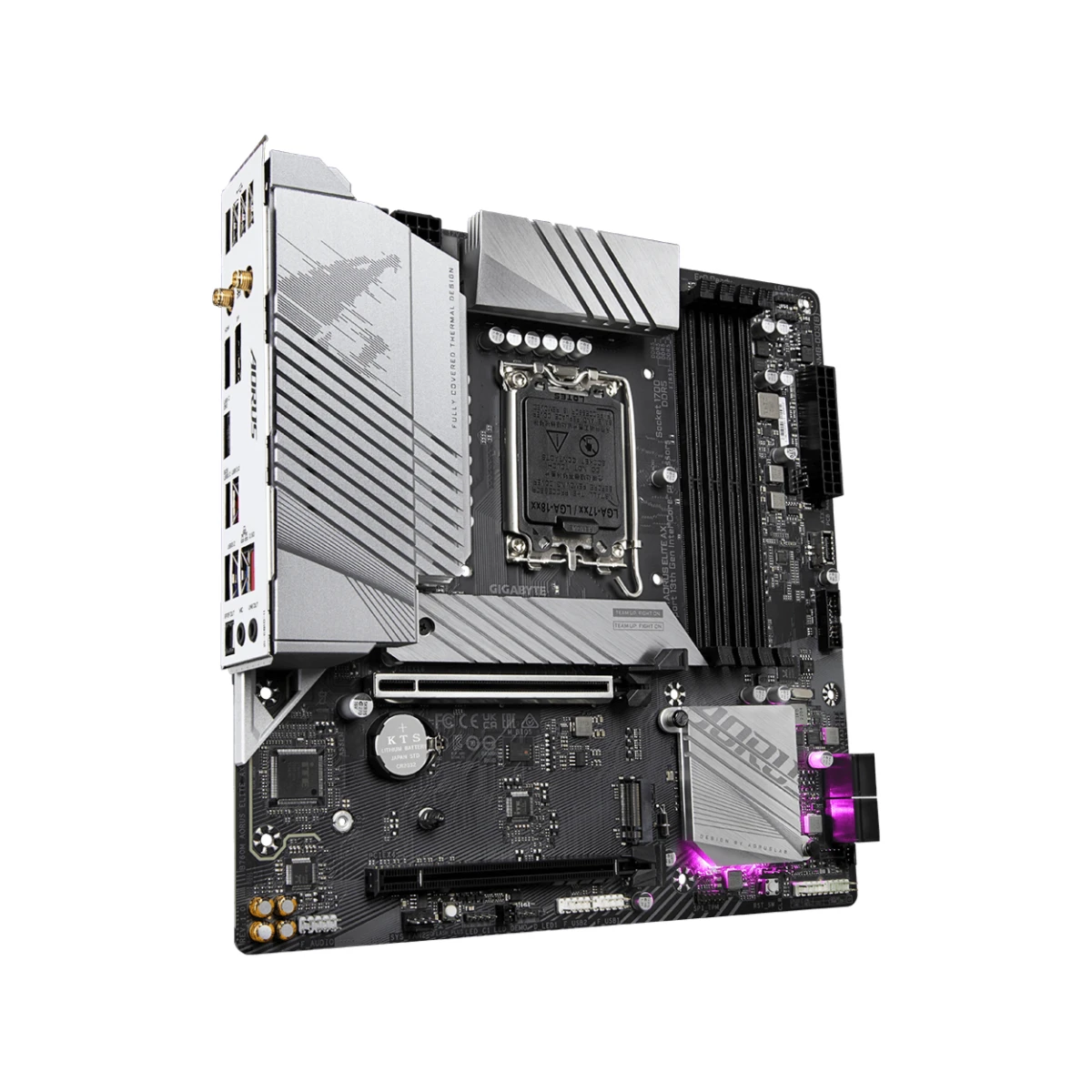

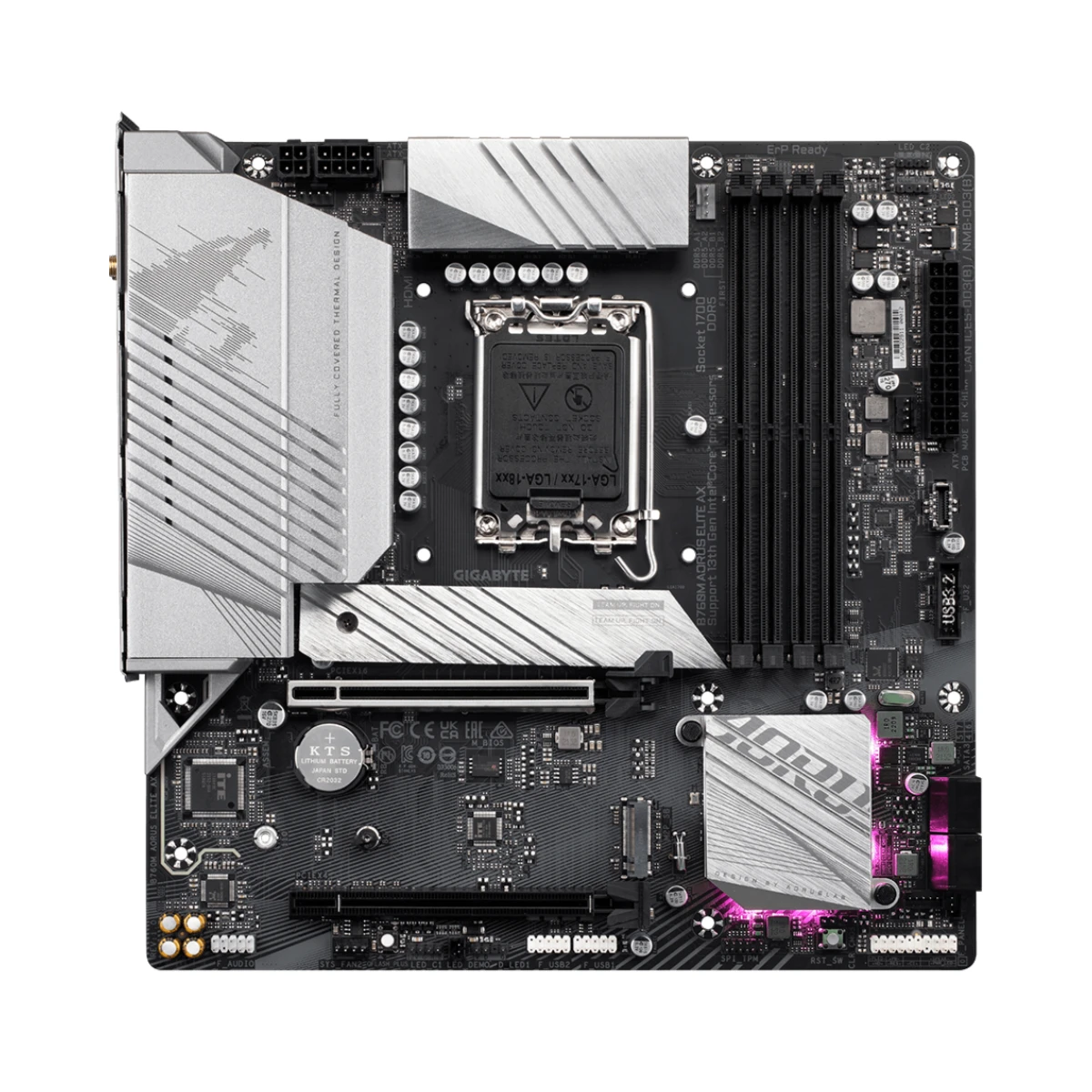

Gigabyte B760M AORUS Elite AX Micro-ATX Gaming Motherboard is a high-performance motherboard designed for gamers, creators, and PC enthusiasts who want a compact yet powerful system in Global. Powered by the Intel® B760 Express Chipset, this motherboard supports Intel 14th, 13th, and 12th Generation Core™, Pentium® Gold, and Celeron® processors through the LGA1700 socket, delivering reliable performance for modern computing tasks.
The motherboard features 4 DDR5 DIMM slots supporting memory speeds up to 7800MHz (OC) and a maximum capacity of 256GB. With dual-channel architecture and XMP support, users can achieve faster memory performance, improved multitasking, and smoother gaming experiences.
For graphics and expansion, the board includes a PCIe 4.0 x16 slot for high-performance graphics cards and an additional PCIe 4.0 x4 slot for expansion devices. Storage capabilities are robust with two PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations for reliable data storage.
Networking is another strong feature of this motherboard. It comes with Intel® WiFi 6E, supporting 2.4GHz, 5GHz, and 6GHz bands, ensuring faster wireless connectivity with lower latency. Additionally, Bluetooth 5.3 provides stable connections for wireless peripherals. For wired networking, the motherboard includes Realtek® 2.5GbE LAN, offering faster and more stable internet connectivity compared to standard Gigabit LAN.
Connectivity options include USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, multiple USB 3.2 Gen 1 ports, and several USB 2.0 ports for connecting various peripherals. Display outputs include HDMI 2.1 and DisplayPort, supporting 4K resolution at 60Hz when using processors with integrated graphics.
Additional features include Realtek® High Definition 7.1-channel audio, Q-Flash Plus for easy BIOS updates, RGB and addressable LED headers, advanced hardware monitoring, and strong cooling support with multiple fan headers.
With its powerful features, compact Micro-ATX form factor, and excellent connectivity options, the Gigabyte B760M AORUS Elite AX is an excellent motherboard choice for building a high-performance PC in Global.
