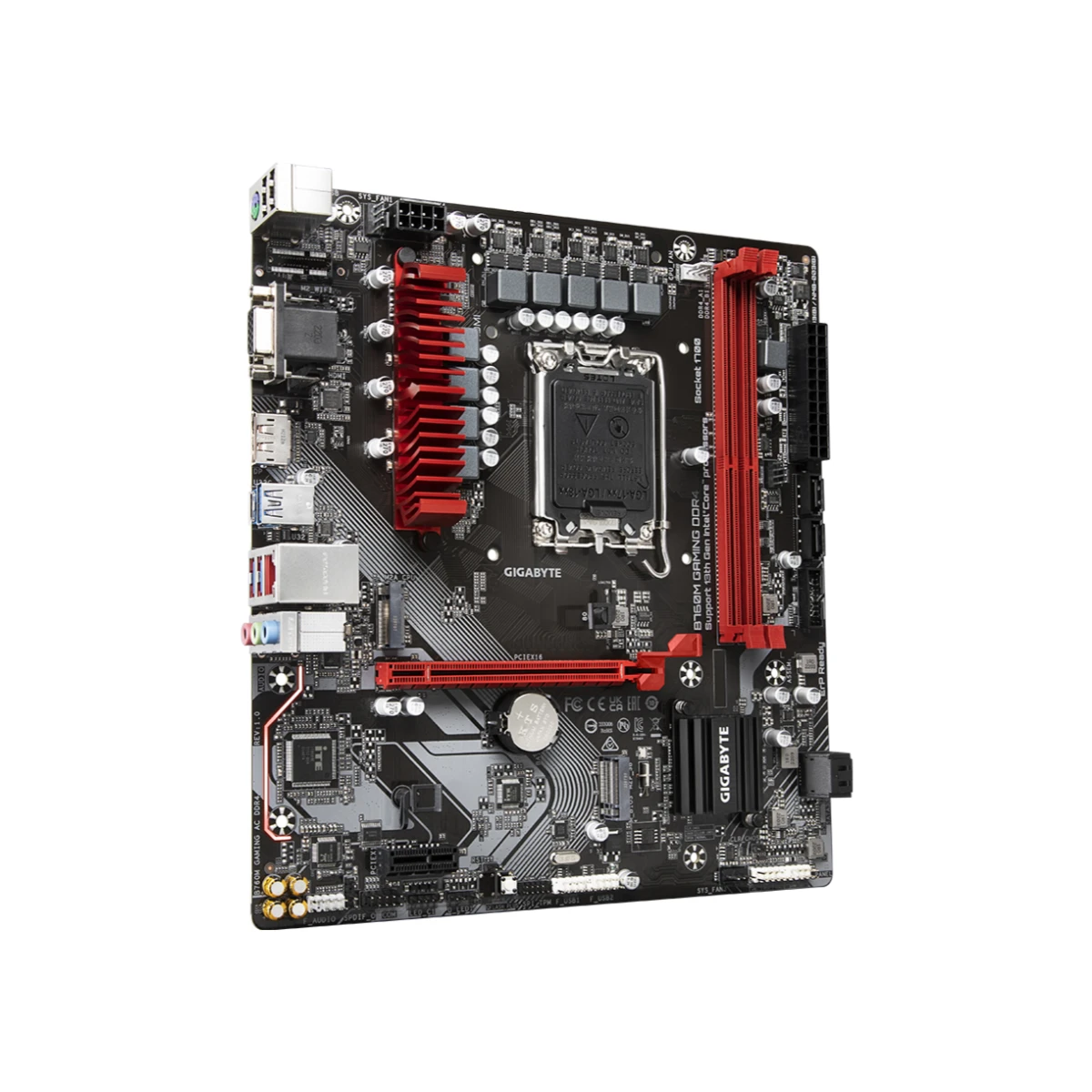

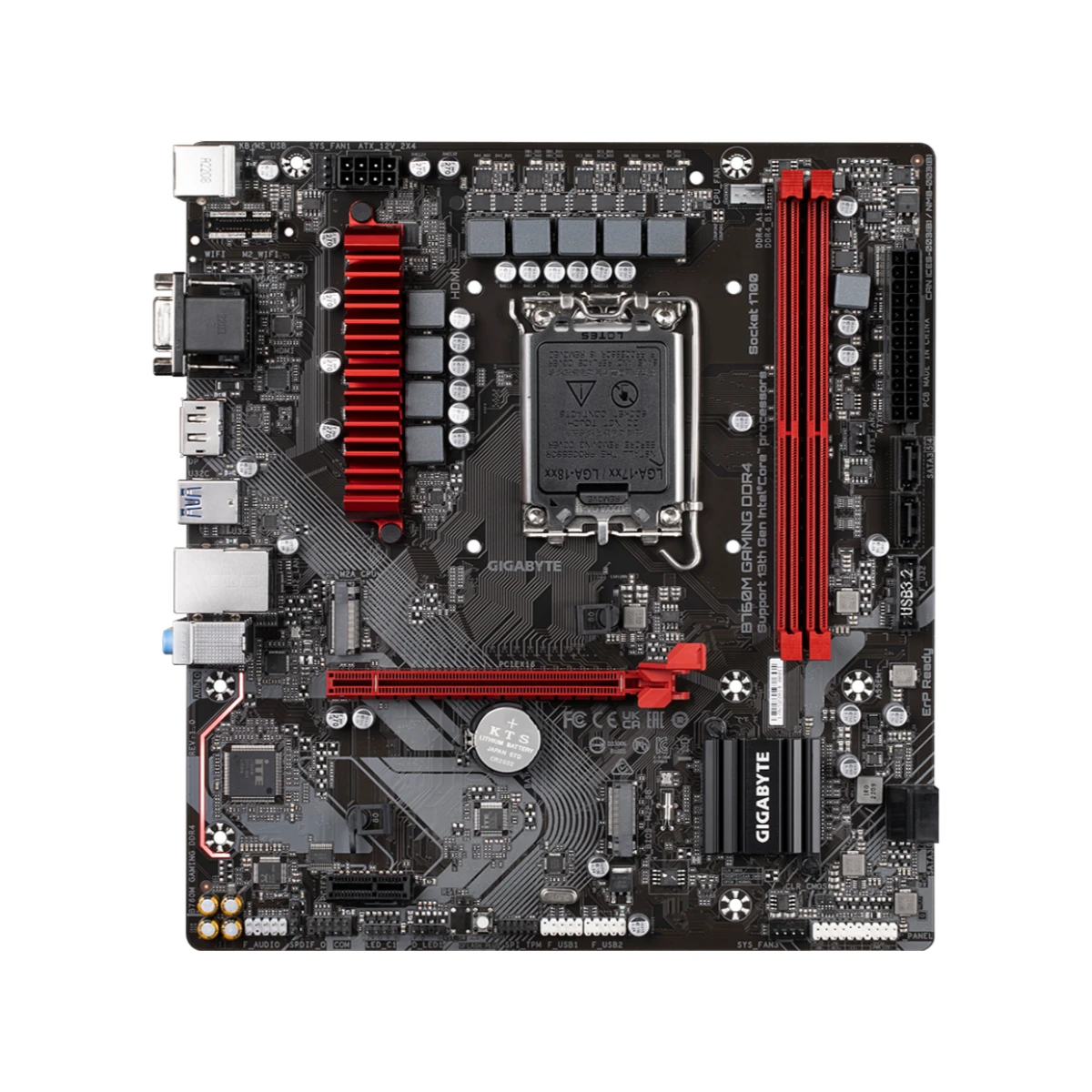

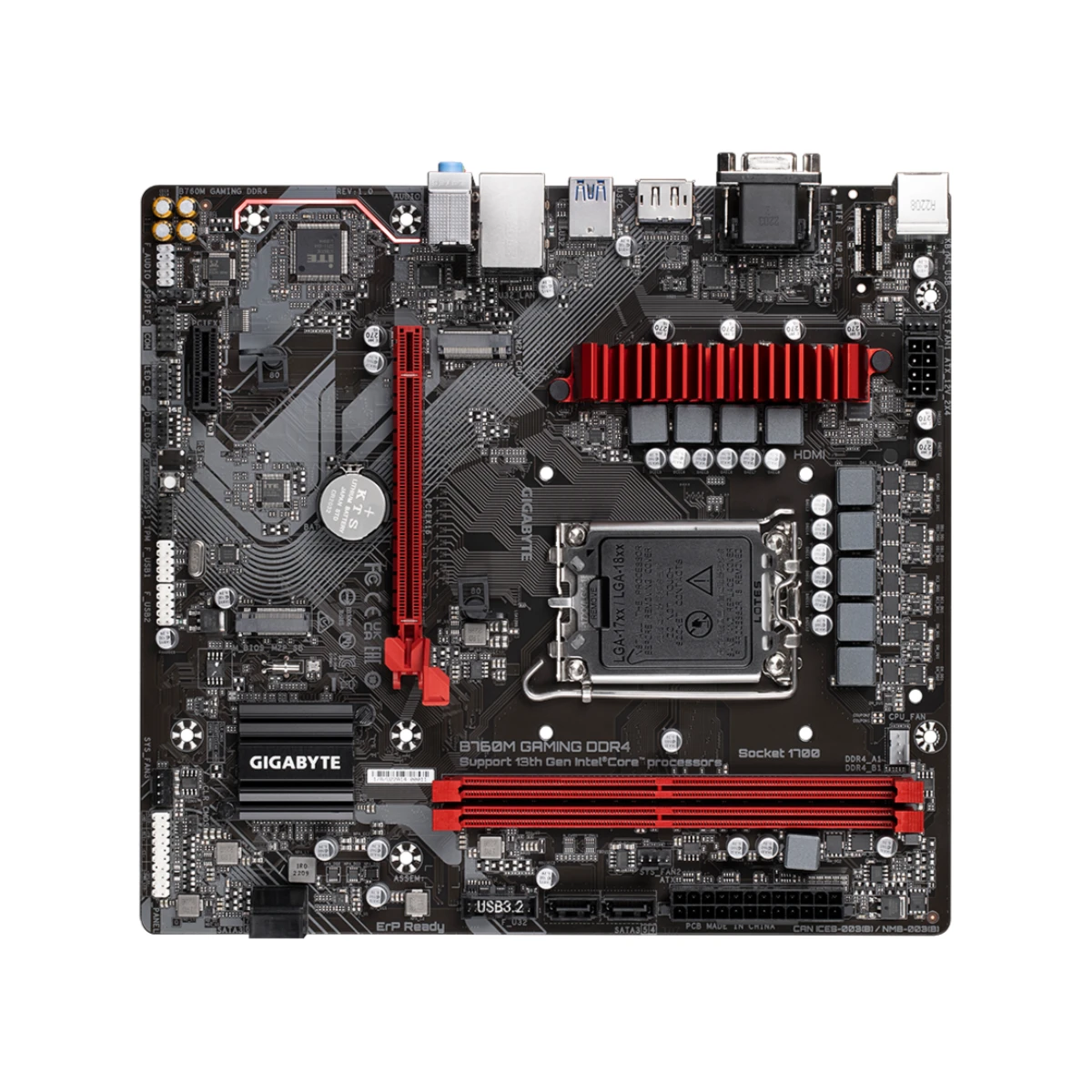

Gigabyte B760M GAMING DDR4 Intel LGA 1700 Micro-ATX Motherboard | B760M-GAMING-DDR4

The GIGABYTE B760M GAMING DDR4 Micro-ATX motherboard is designed for users in Global who demand reliable performance for gaming, productivity, and multimedia tasks. Featuring the Intel® B760 chipset and LGA1700 socket, it supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors for versatile computing options.

Memory support includes 2× DDR4 DIMM slots, accommodating up to 64GB of system RAM with overclocking support up to 5333MHz (O.C.). Dual-channel architecture and Intel® XMP support ensure optimal system responsiveness for multitasking and high-speed applications.

The motherboard provides integrated Intel® HD graphics with multiple display outputs, including HDMI 2.1, DisplayPort 1.2, and D-Sub, supporting up to three displays simultaneously. Expansion options include 1× PCIe 4.0 x16 slot for high-performance GPUs and 1× PCIe 3.0 x1 slot for additional expansion cards. Storage options are flexible, with 2× M.2 slots and 4× SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations.

Networking and connectivity feature Realtek 2.5GbE LAN and multiple USB ports, including USB Type-C, USB 3.2 Gen 1, and USB 2.0 for front and rear panels. Additional features include GIGABYTE Control Center (GCC) for system management, Q-Flash and Q-Flash Plus for BIOS updates, and RGB LED headers for customizable lighting setups.

Audio is handled by Realtek® HD Audio CODEC, supporting 2/4/5.1/7.1 channels and S/PDIF output. The motherboard also supports voltage, temperature, and fan speed monitoring for system stability. Compact and powerful, the GIGABYTE B760M GAMING DDR4 (24.4 cm x 22.5 cm) is ideal for high-performance builds in Global.
