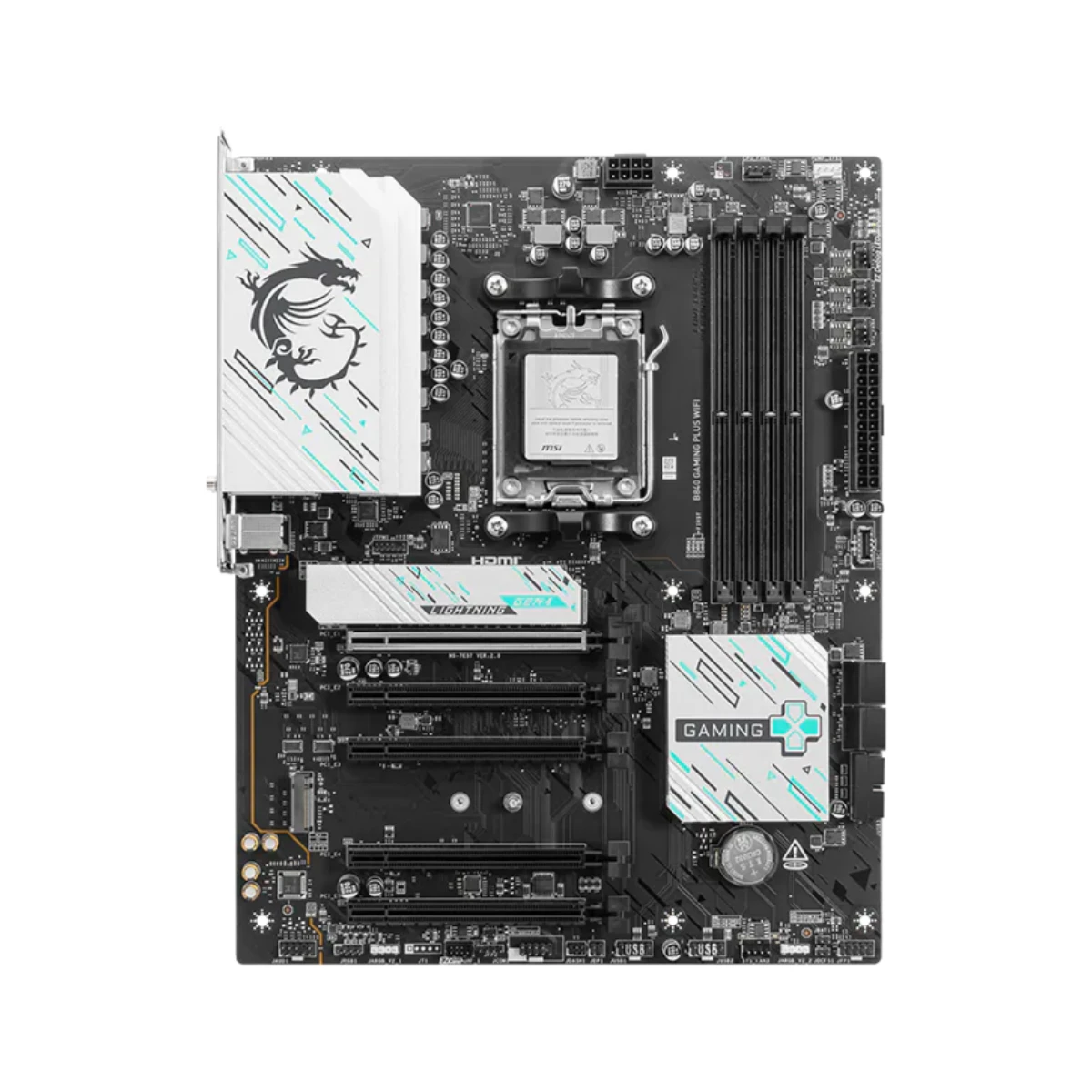

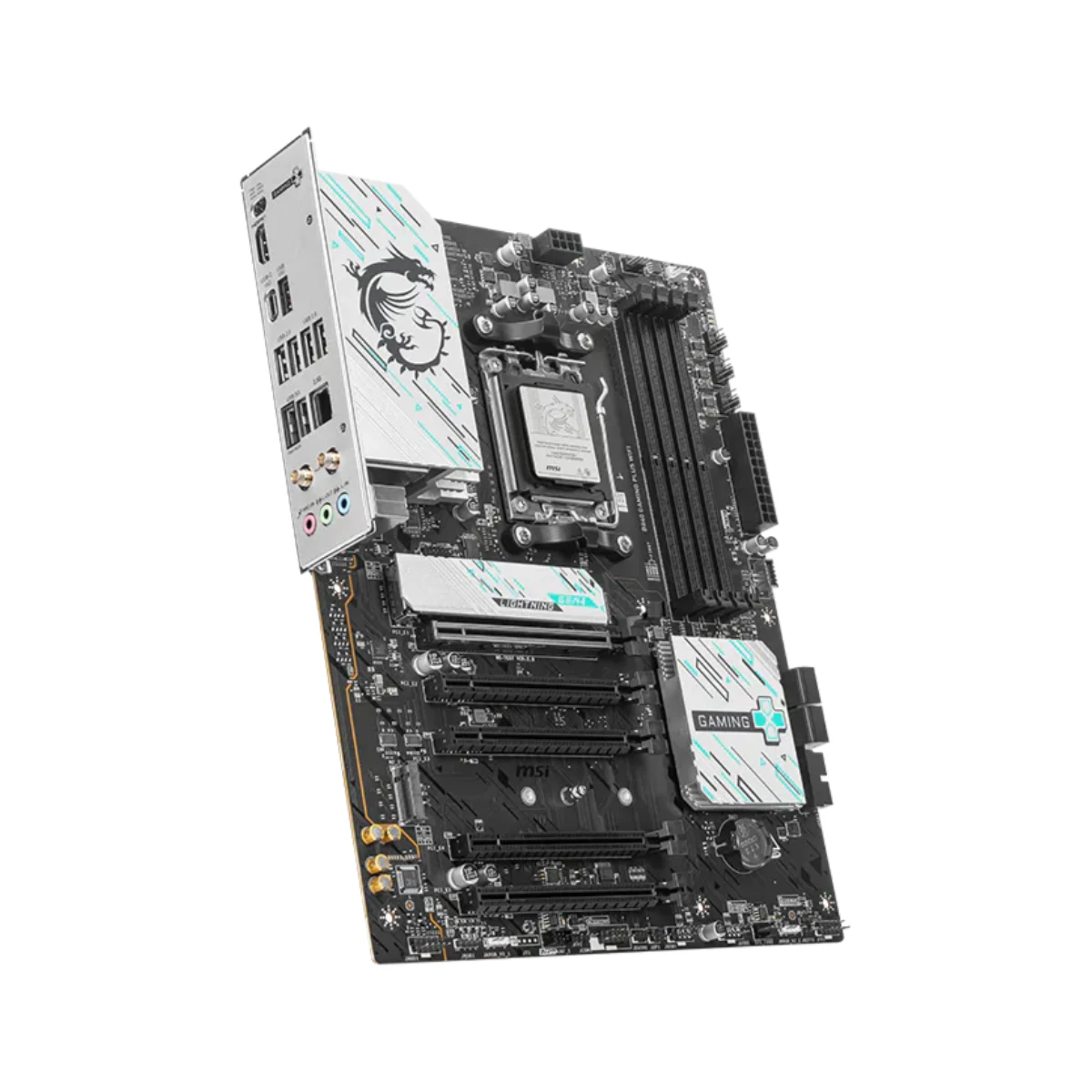

MSI B840 GAMING PLUS WIFI is a high-performance ATX motherboard engineered for gamers, creators, and PC enthusiasts who demand stability, speed, and modern connectivity. Powered by the AMD B840 chipset and supporting AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors through the Socket AM5 platform, this motherboard delivers excellent processing performance and reliability for modern systems in Global.
Memory performance is optimized for high-speed computing with 4x DDR5 UDIMM slots supporting a maximum capacity of 256GB. The board supports memory speeds ranging from DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, allowing users to unlock fast system responsiveness and improved multitasking performance. Overclocking potential reaches up to 8000+ MT/s depending on configuration, while AMD EXPOTM technology allows simple memory tuning. With support for Dual-Channel mode, Non-ECC Un-buffered memory, and advanced memory compatibility, the motherboard ensures stable and efficient performance for demanding workloads.
For graphics and expansion, the board includes 5x PCI-E x16 slots, with the primary slot supporting PCIe 4.0 x16 directly from the CPU. This provides strong bandwidth for high-performance GPUs used in gaming, content creation, and rendering tasks. Integrated display connectivity is available via HDMI™ 2.1, supporting resolutions up to 4K 60Hz when paired with processors featuring integrated graphics.
Storage performance is designed for speed and flexibility with 2x M.2 slots supporting PCIe 4.0 x4 NVMe SSDs, ensuring rapid boot times and fast data transfer speeds. Additional storage support includes 4x SATA 6G ports for traditional drives. RAID configurations are supported with RAID 0, RAID 1 and RAID 10 for SATA storage devices, along with RAID 0 and RAID 1 for M.2 NVMe storage devices, enabling flexible storage solutions for speed or redundancy.
Networking features include Realtek® 8125BG 2.5G LAN for fast wired connectivity, paired with advanced Wi-Fi 7 Solution supporting 2.4GHz / 5GHz / 6GHz bands with speeds up to 5.8Gbps, as well as Bluetooth® 5.4 for modern wireless device connectivity.
Audio performance is handled by the Realtek® ALC897 codec delivering 7.1-Channel High Definition Audio, providing immersive sound quality for gaming, streaming, and multimedia experiences.
The motherboard also includes high-speed connectivity options such as USB 10Gbps Type-A, USB 10Gbps Type-C, and multiple USB 5Gbps ports for modern peripherals. Diagnostic tools like EZ Debug LED help simplify troubleshooting and system setup.
Combining powerful Ryzen processor support, fast DDR5 memory capability, flexible storage options, and advanced networking technologies, MSI B840 GAMING PLUS WIFI offers a reliable and future-ready platform for high-performance PC builds in Global.
