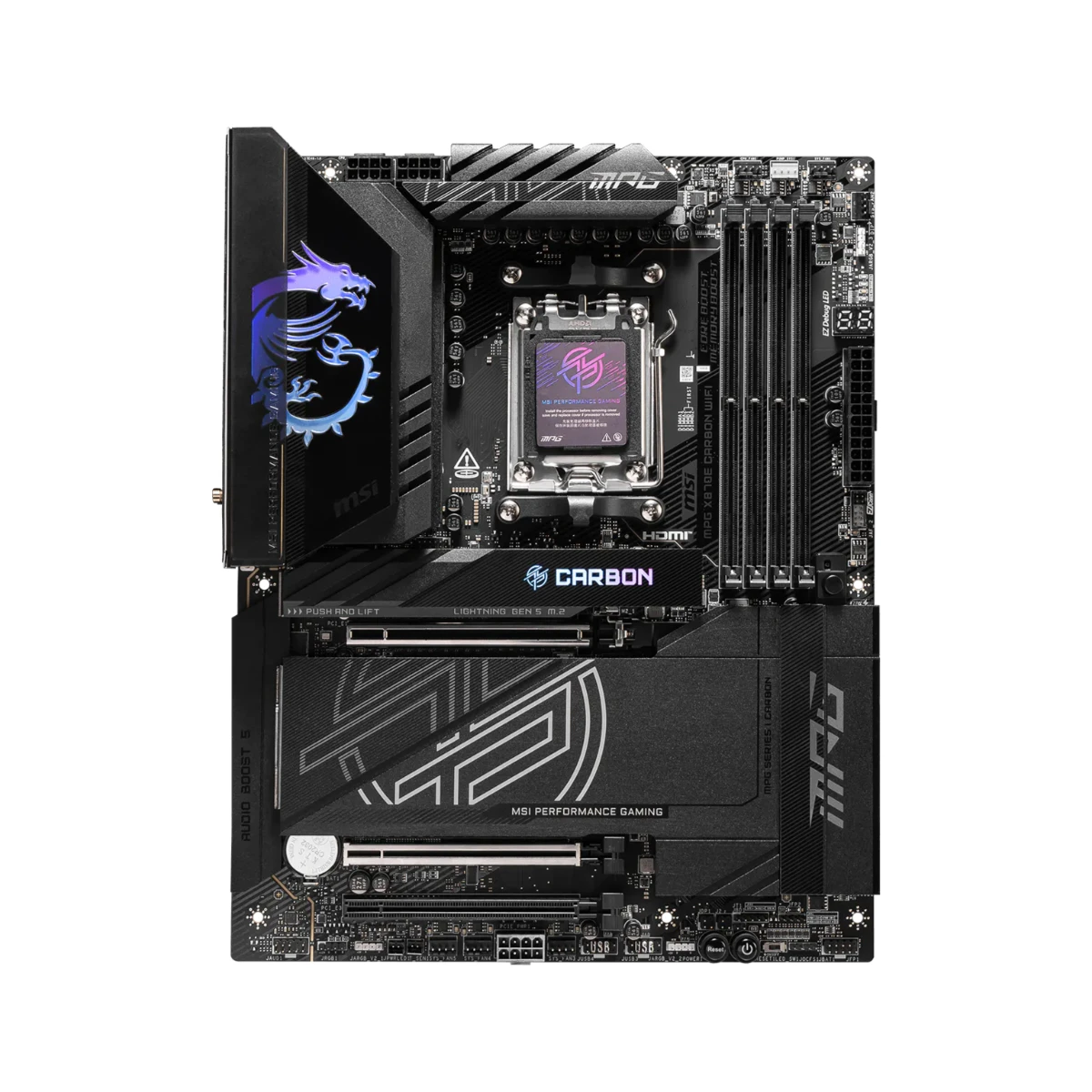

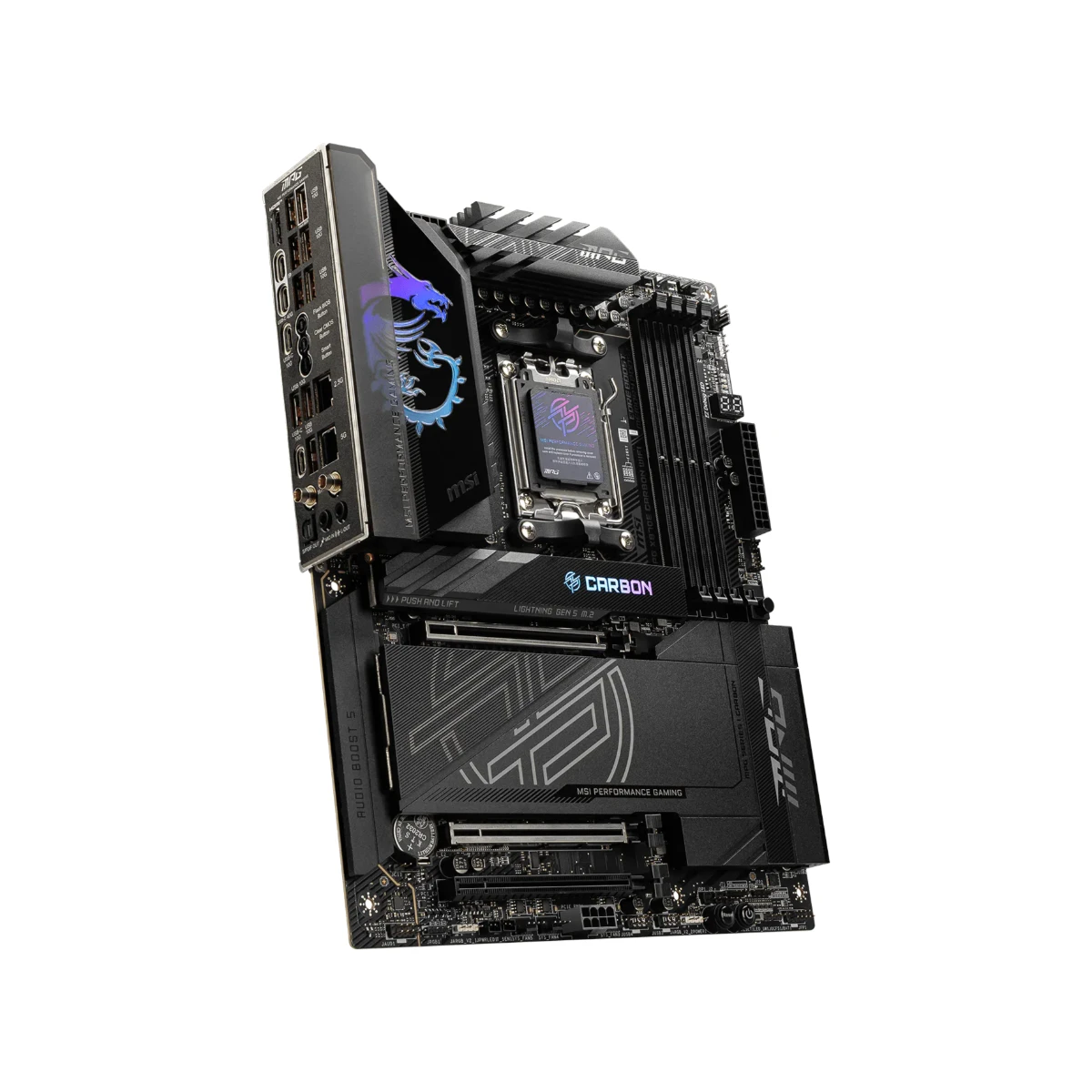

The MSI MPG X870E CARBON WIFI AM5 ATX Gaming Motherboard is a premium gaming motherboard built for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors in Global. Powered by the AMD X870E chipset and designed with the Socket AM5 platform, it delivers cutting-edge performance, advanced connectivity, and powerful expansion capabilities for gamers, creators, and performance enthusiasts.
Memory performance is one of the standout features of this motherboard. It includes 4 DDR5 UDIMM slots supporting up to 256GB of memory, enabling users to build high-capacity systems for intensive multitasking and high-performance workloads. The motherboard supports DDR5 memory speeds up to 9000 MT/s (OC) along with JEDEC speeds from 4800 to 5600 MT/s. With AMD EXPO™ support, dual-channel architecture, and memory overclocking capabilities, users can unlock maximum memory performance for demanding applications and gaming systems in Global.
For expansion and graphics support, the motherboard offers three PCIe x16 slots, including PCIe 5.0 x16 and PCIe 5.0 x4 slots from the CPU and an additional PCIe 4.0 x4 slot from the chipset. These slots ensure compatibility with modern graphics cards, capture cards, and other high-speed expansion devices. Storage capabilities are equally impressive with four M.2 slots supporting PCIe 5.0 and PCIe 4.0 NVMe SSDs, along with four SATA 6Gb/s ports for traditional storage devices. RAID configurations including RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe drives provide flexible storage options for performance and data redundancy.
Networking and connectivity are designed for next-generation computing in Global. The motherboard features dual LAN ports including Realtek® 5G LAN and Realtek® 2.5G LAN, along with Wi-Fi 7 supporting 2.4GHz, 5GHz, and 6GHz bands and speeds up to 5.8Gbps. It also supports Bluetooth® 5.4, ensuring stable wireless connections for peripherals and devices.

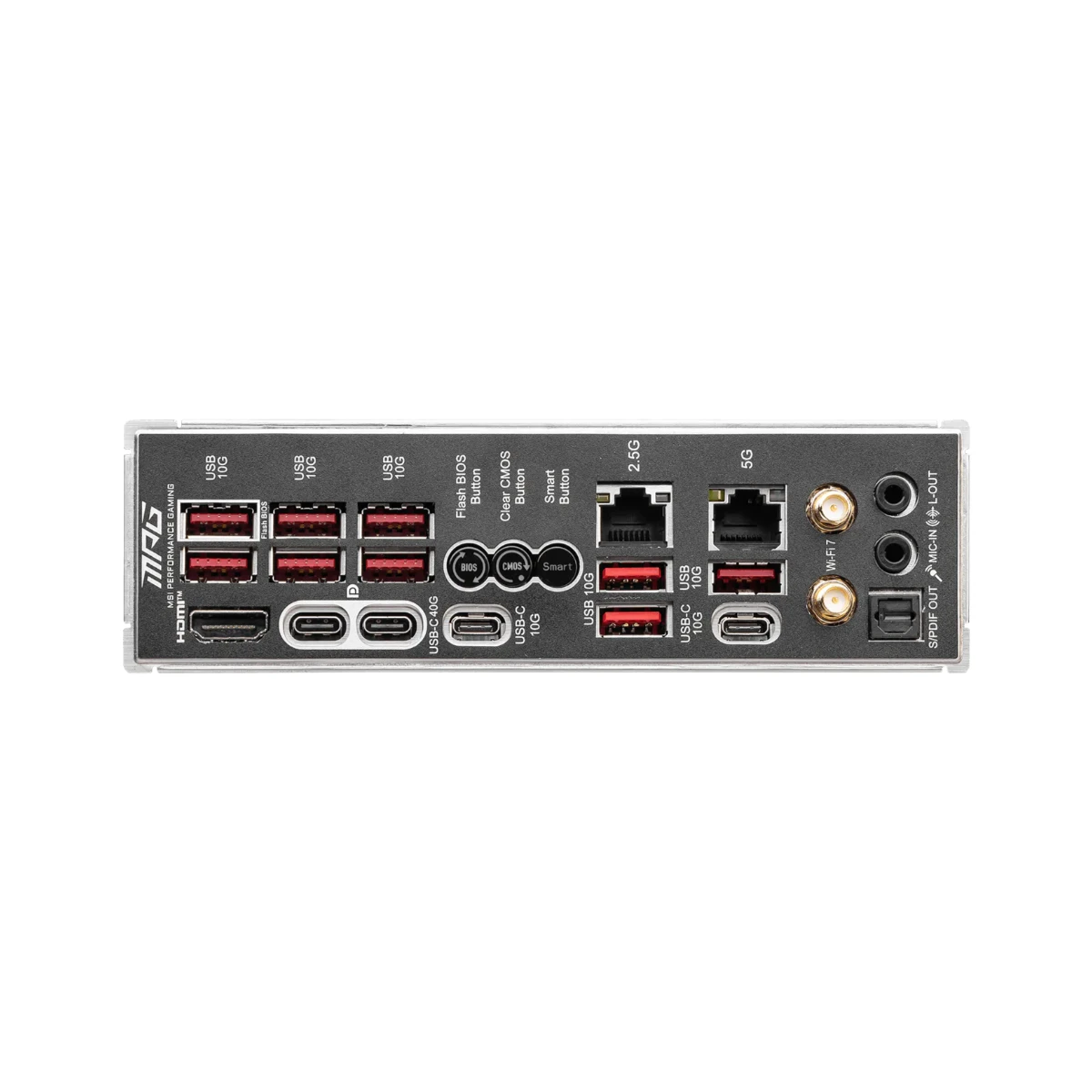

The motherboard also offers extensive connectivity with USB4® 40Gbps Type-C ports, USB 20Gbps Type-C, USB 10Gbps ports, and HDMI 2.1 output supporting up to 8K resolution when paired with processors featuring integrated graphics. Audio is powered by the Realtek® ALC4080 7.1-channel high-performance codec, delivering immersive sound quality with 32-bit/384 kHz playback and S/PDIF output.
With features like EZ Debug LEDs, EZ Digit Debug display, Flash BIOS button, advanced cooling headers, RGB lighting support, and durable ATX PCB design, the MSI MPG X870E CARBON WIFI motherboard is an excellent choice for building powerful gaming and high-performance desktop systems in Global.
