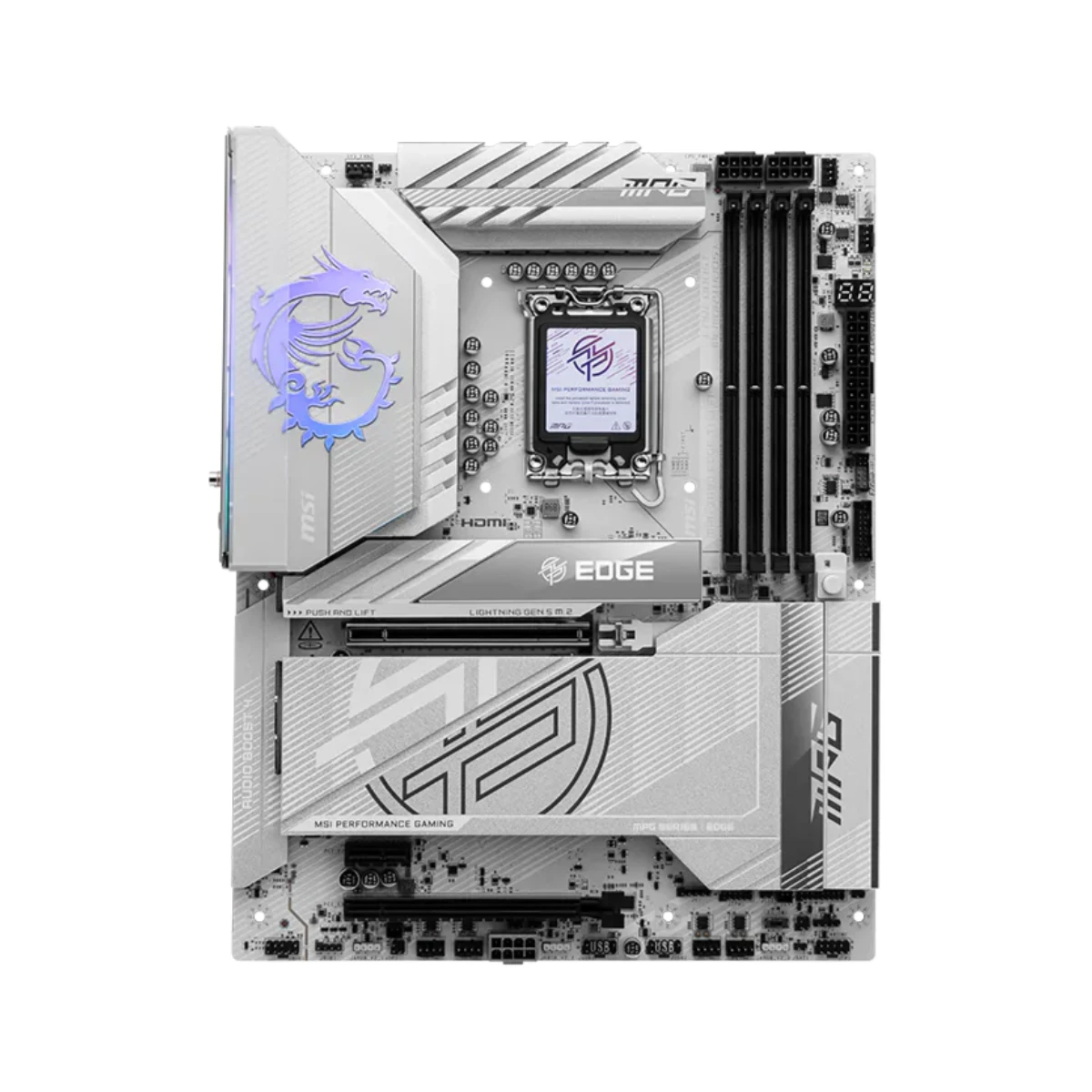

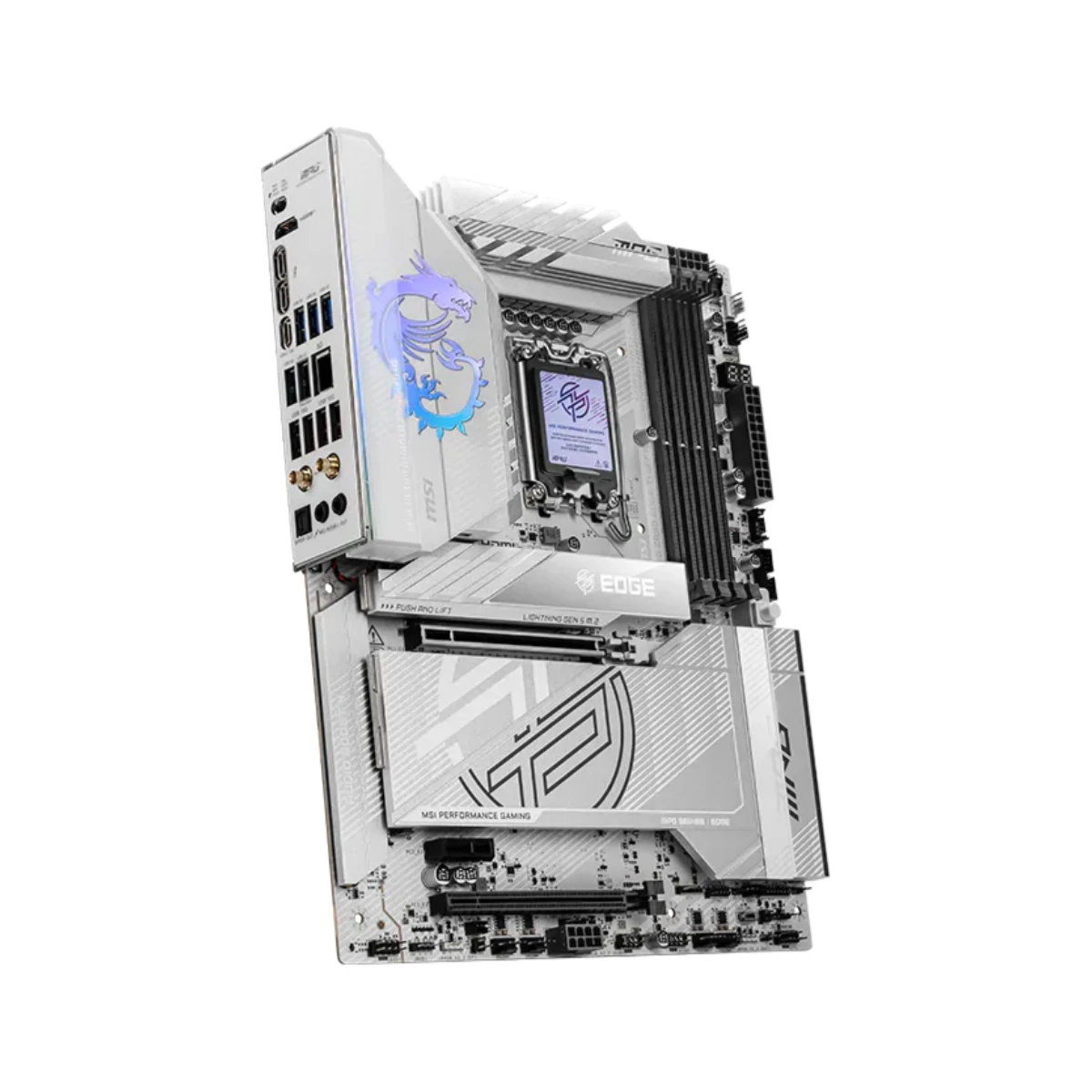

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Gaming Motherboard is a premium gaming motherboard engineered for enthusiasts, competitive gamers, and professional creators building high-performance systems in Global. Powered by the advanced INTEL Z890 chipset and designed for the LGA 1851 platform, it supports Intel® Core™ Ultra Processors (Series 2), delivering exceptional computing power, multitasking capability, and next-generation gaming performance.
The motherboard features 4x DDR5 UDIMM slots supporting a massive 256GB memory capacity. With memory speeds ranging from 9200 - 6400 (OC) MT/s and 6400 - 4800 (JEDEC) MT/s, users can unlock extreme memory bandwidth for demanding applications. Advanced support for Intel XMP 3.0, Dual-Controller Dual-Channel mode, and memory overclocking enables enthusiasts to fine-tune system performance while maintaining stability.

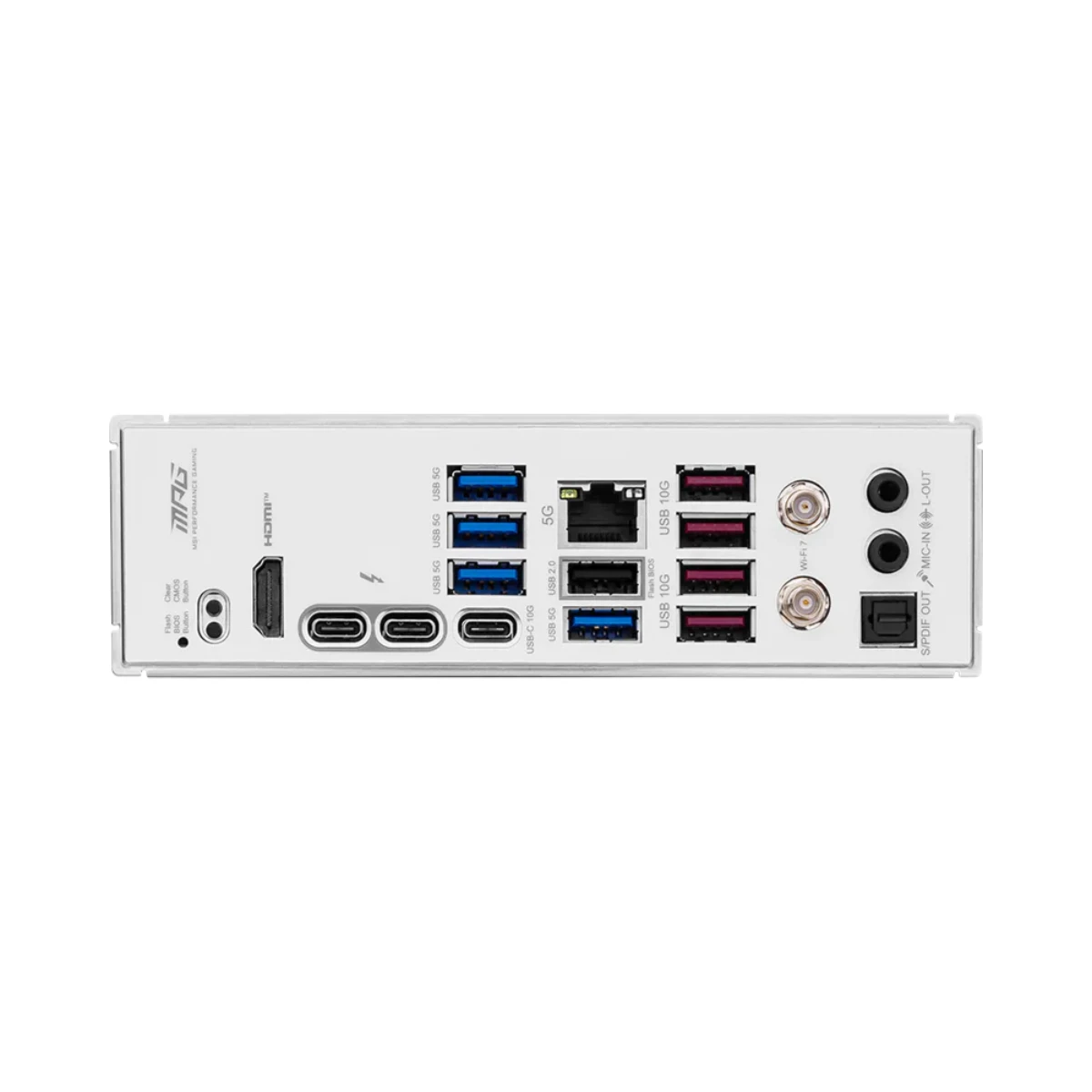

For graphics and expansion, the board includes 2x PCI-E x16 slots and 1x PCI-E x1 slot, with the primary slot supporting PCIe 5.0 x16 directly from the CPU. Flexible lane configurations such as X8+X8 / X8+X4+X4 allow multi-device setups for GPUs, capture cards, or high-performance add-in cards. Integrated graphics connectivity includes 1x HDMI™ with HDMI 2.1 supporting up to 8K 60Hz, along with 2x Type-C DisplayPort Thunderbolt™ 4 ports capable of 4K@120Hz / 8K@60Hz output.
Storage performance is exceptional with 5x M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4 NVMe SSDs, plus 4x SATA 6G ports for additional drives. Advanced storage flexibility includes RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and M.2 NVMe storage devices, ensuring performance, redundancy, and scalability.
Networking is built for ultra-fast connectivity with Intel® Killer™ E5000B 5G LAN and Intel® Killer™ BE1750x Wi-Fi 7, supporting 2.4GHz / 5GHz / 6GHz (320MHz) with speeds up to 5.8Gbps, along with Bluetooth® 5.4 for seamless wireless connections.
The audio system features the premium Realtek® ALC1220P Codec delivering 7.1-Channel High Definition Audio with S/PDIF output, providing immersive sound quality for gaming and media creation.
Connectivity is further enhanced with 2x Thunderbolt 4 ports supporting up to 40Gbps transfer rate, along with a wide range of high-speed USB options including USB 10Gbps Type-C, USB 20Gbps Type-C (Front) with USB PD 27W fast charging, and multiple USB 5Gbps and USB 2.0 ports.
Built in a durable ATX form factor (243.84mm x 304.8mm) and equipped with advanced cooling controls including CPU Fan, Pump/System Fan, and 6x System Fan headers, the MSI MPG Z890 EDGE TI WIFI delivers exceptional reliability, connectivity, and overclocking capabilities—making it an ideal foundation for next-generation gaming and professional PC builds in Global.
