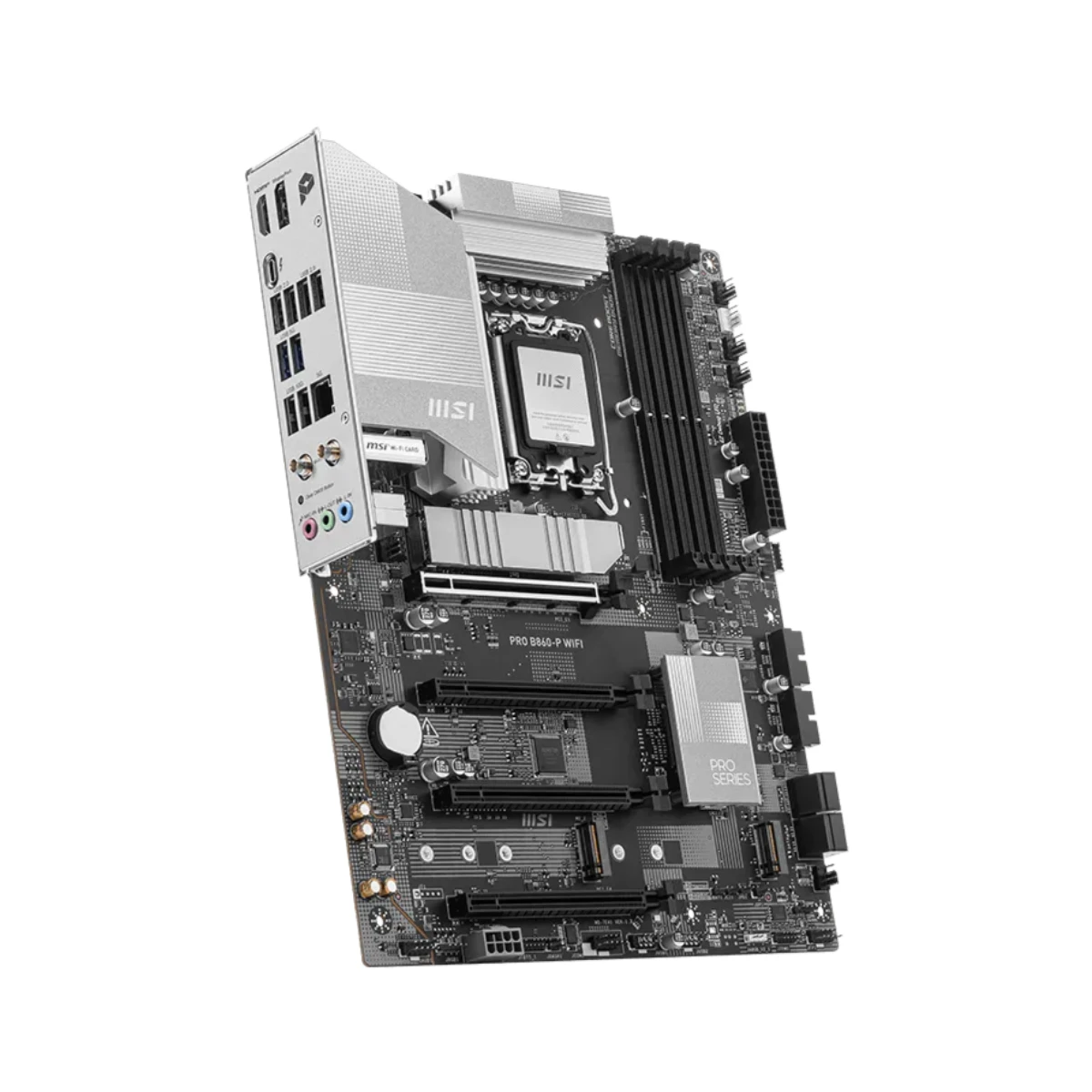

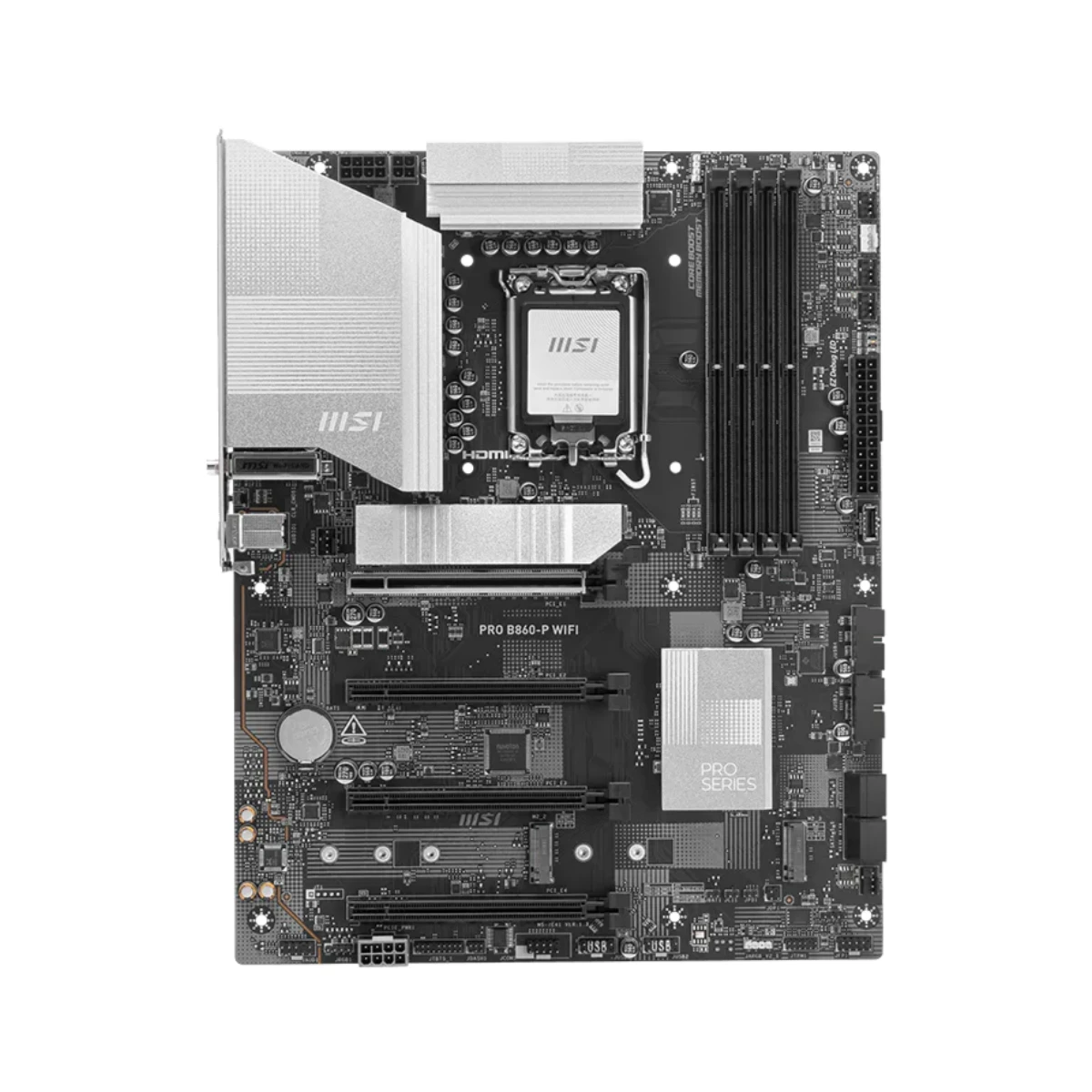

MSI PRO B860-P WIFI is a high-performance ATX motherboard designed for Intel® LGA 1851 platforms, ideal for gamers, creators, and professionals in Global. Powered by the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2) for smooth multitasking and advanced computing performance.
The motherboard features 4x DDR5 UDIMM slots with a maximum memory capacity of 256GB, supporting speeds from 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s. With Intel® XMP 3.0 support, dual-controller dual-channel mode, and CUDIMM compatibility, users can push memory performance to its limits.
Graphics support includes HDMI™ 2.1 and DisplayPort 1.4, with resolutions up to 4K 60Hz, while the Thunderbolt™ 4 Type-C port enables ultra-fast data transfer and supports up to 8K@60Hz / 4K@120Hz displays. Expansion options are robust with 4x PCIe x16 slots, including PCIe 5.0 x16 from the CPU and additional PCIe 4.0 lanes.
Storage is extensive with 3x M.2 slots for PCIe 5.0/4.0 SSDs and 4x SATA 6G ports, along with RAID support for RAID 0, 1, 5, and 10, providing flexibility for high-speed and secure storage setups.

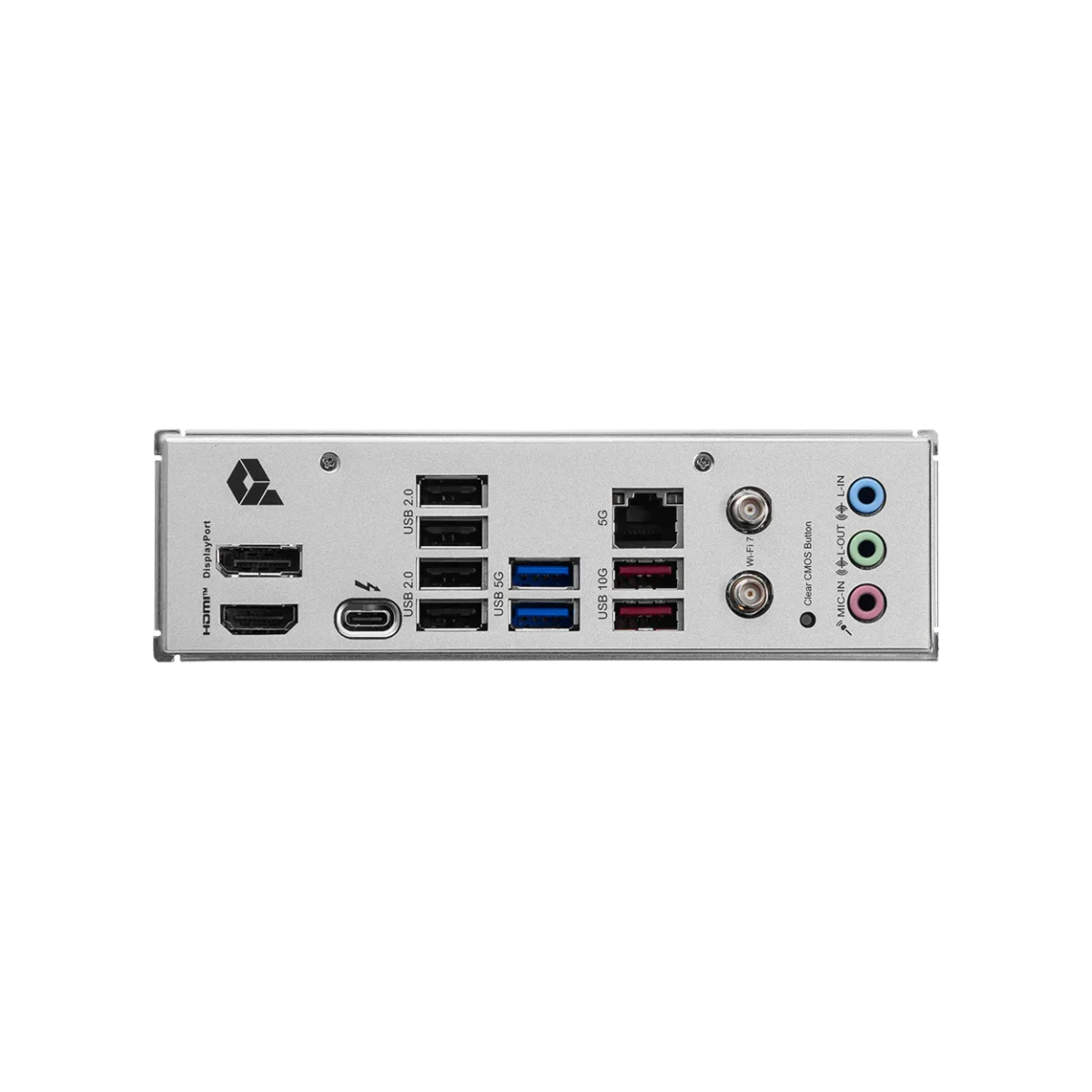

Connectivity is advanced with Intel® 8126 5Gbps LAN, Wi-Fi 7, and Bluetooth® 5.4, delivering reliable wired and wireless networking. USB options include multiple 10Gbps Type-A and Type-C ports for high-speed peripherals and data devices.
Audio is powered by the Realtek® ALC897 Codec with 7.1-Channel HD Audio, and the motherboard includes multiple headers for fans, RGB lighting, Thunderbolt, and TPM 2.0.
With its ATX form factor, high-speed memory, PCIe 5.0 support, Thunderbolt™ 4, M.2 storage options, and next-gen connectivity, MSI PRO B860-P WIFI provides a complete platform for building a modern, high-performance PC in Global.
