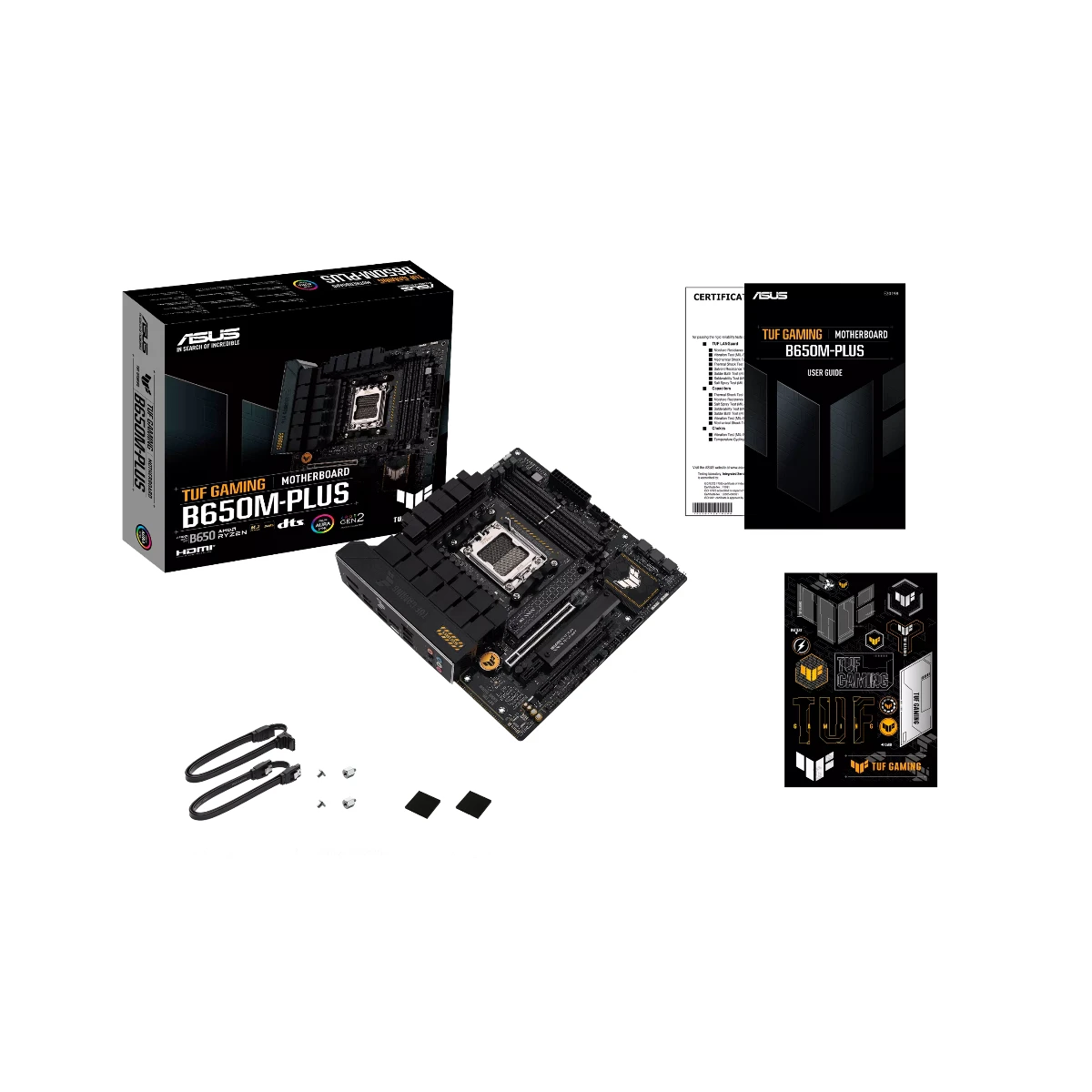

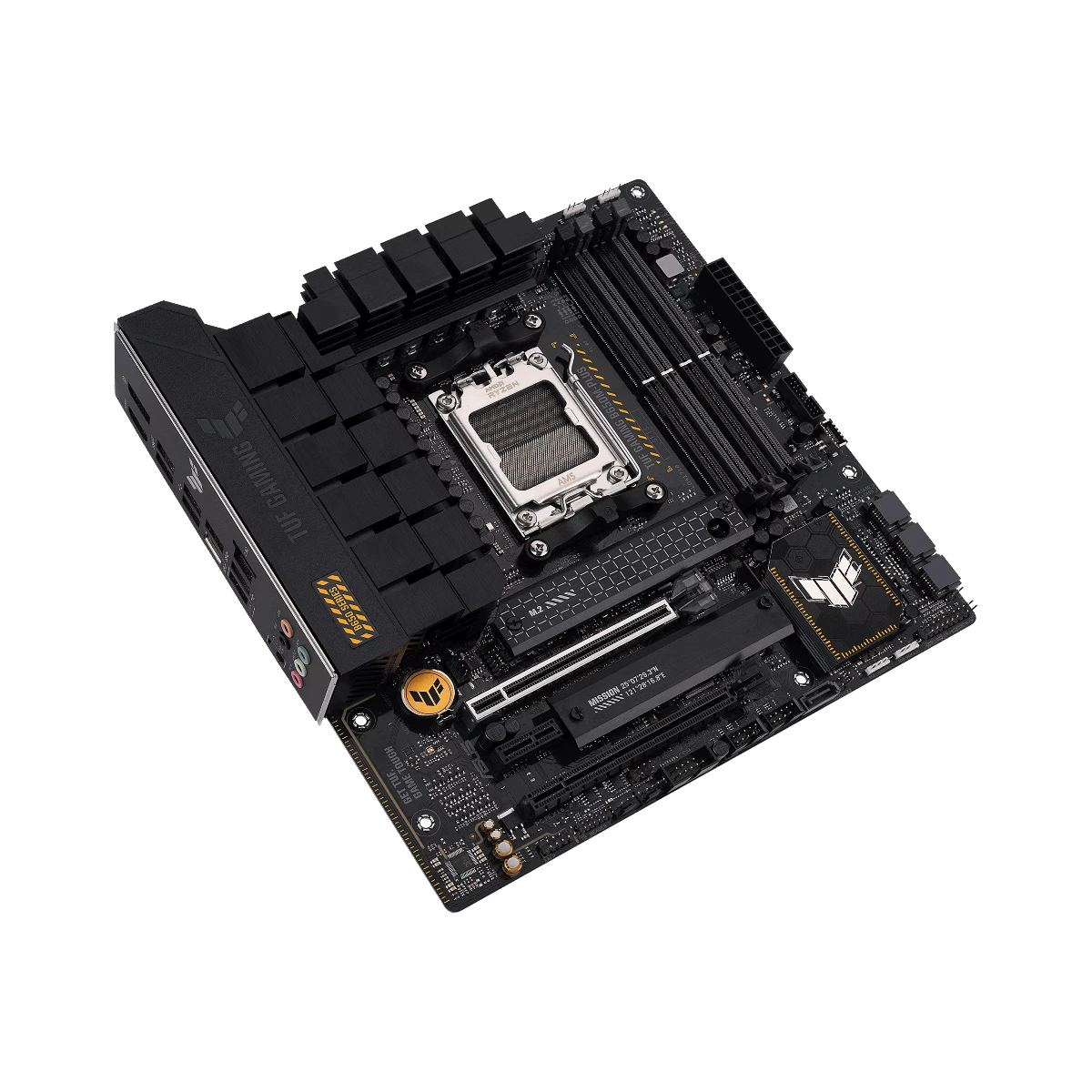

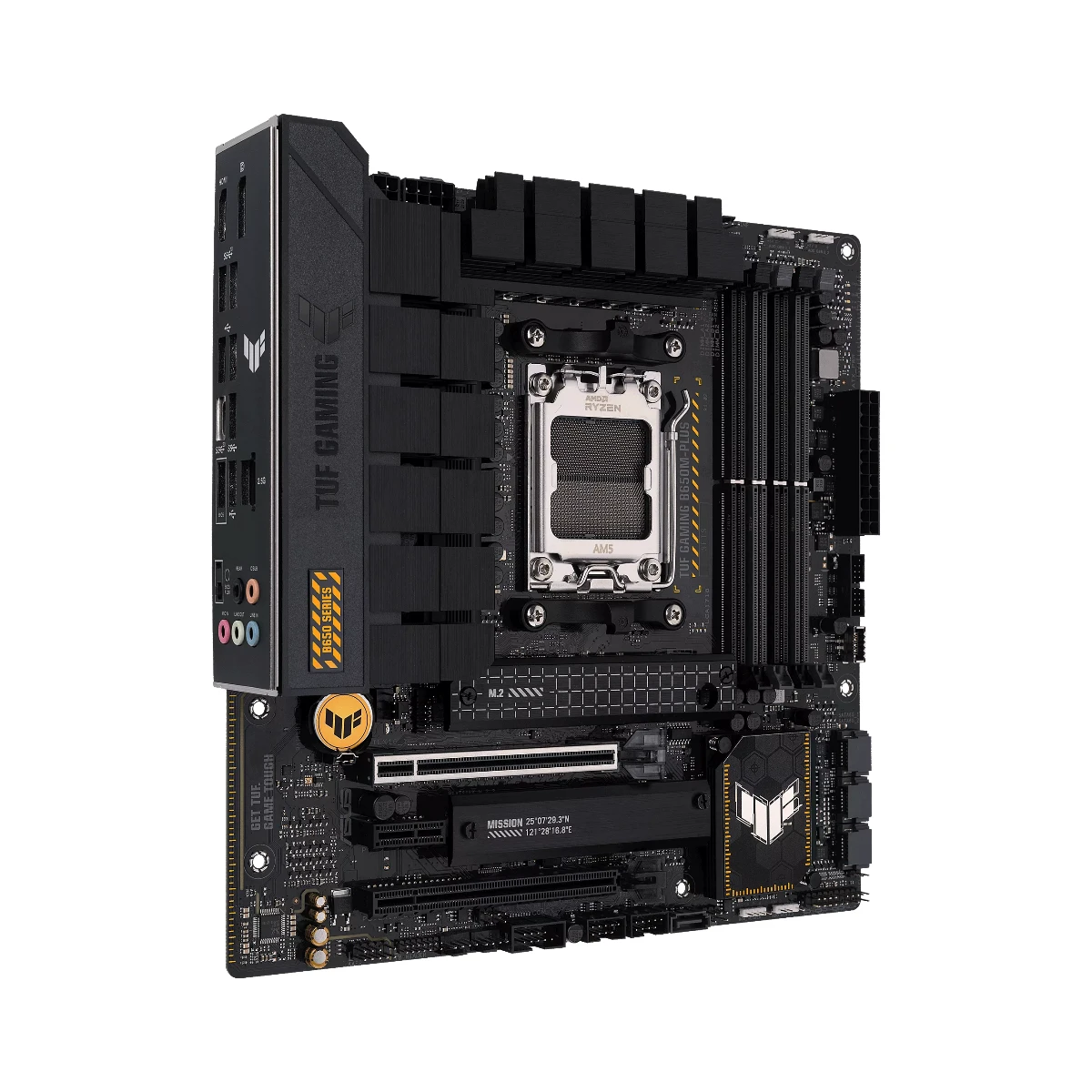

The ASUS TUF GAMING B650M-PLUS is a high-performance Micro-ATX motherboard designed for gamers and PC enthusiasts using AMD’s AM5 socket Ryzen™ 7000, 8000, and 9000 series desktop processors. It delivers reliability, durability, and expandability for compact builds without compromising features.
Memory support includes 4× DDR5 DIMM slots with a maximum capacity of 256GB, dual-channel architecture, and speeds up to 7600+(OC). The board supports AMD EXPO™ profiles for optimized overclocking and stable performance with non-ECC unbuffered memory.
For graphics, the motherboard provides DisplayPort 1.4 and HDMI 2.1 outputs, supporting up to 8K resolution depending on the CPU. Expansion options include PCIe 5.0 x16 and PCIe 4.0 x16/x1 slots, allowing high-speed GPU and expansion card installations.
Storage features include 2× M.2 slots and 4× SATA 6Gb/s ports, supporting both NVMe RAID 0/1/10 and SATA RAID 0/1/10 through AMD RAIDXpert2 technology.
Networking and connectivity are robust with Realtek 2.5Gb Ethernet, Wi-Fi 6 (2x2), and Bluetooth v5.2. USB connectivity includes USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 Gen 2/1 Type-A, and USB 2.0 ports.
Audio is powered by the Realtek 7.1 Surround Sound HD Audio CODEC, featuring shielding, premium capacitors, and dedicated PCB layers for clear, immersive sound.
Additional features include ASUS TUF Protection, SafeSlot Core+, M.2 heatsinks, Aura Sync RGB headers, BIOS FlashBack™, pre-mounted I/O shield, and Q-LED diagnostic indicators.
The Micro-ATX form factor (24.4 × 24.4 cm) makes this motherboard perfect for smaller builds while still offering a high-end AMD desktop experience. The ASUS TUF GAMING B650M-PLUS combines performance, expandability, and durability, ideal for compact gaming rigs and professional workstations.
