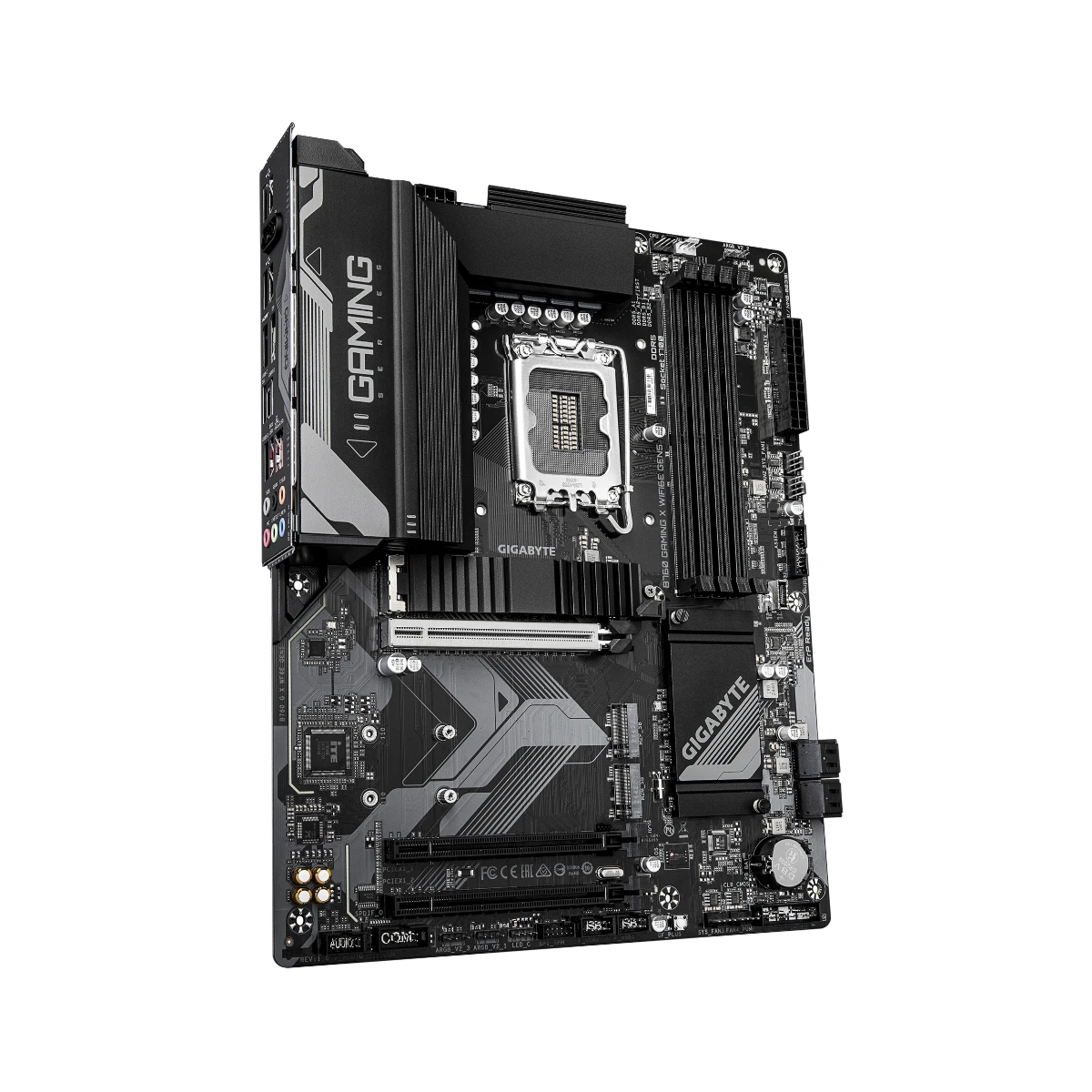

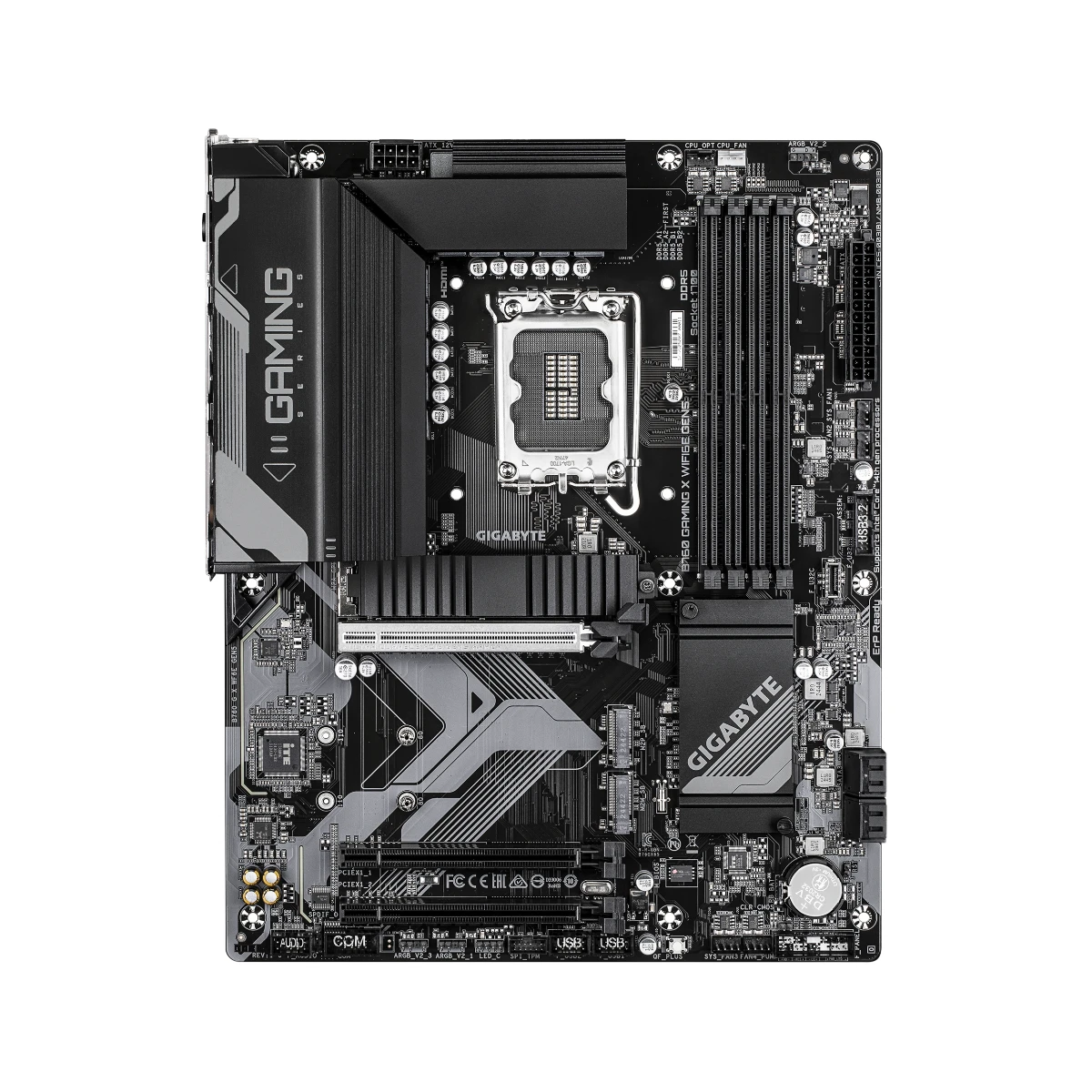

Gigabyte B760 GAMING X WIFI6E GEN5 LGA 1700 ATX Motherboard | B760-G-X-WF6E-GEN5

Gigabyte B760 GAMING X WIFI6E GEN5 is designed for users in Global who demand high-speed performance, advanced connectivity, and robust expandability. Supporting LGA1700 socket CPUs including 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, it delivers seamless processing power for gaming, content creation, and multitasking.

Memory support is versatile with 4 x DDR5 DIMM sockets, accommodating up to 256GB of system memory and speeds up to DDR5 7600(O.C.). Dual-channel architecture, ECC/non-ECC support, and Extreme Memory Profile (XMP) ensure optimized performance and overclocking potential. Storage options include 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) and 4 x SATA 6Gb/s ports, with RAID 0/1/5/10 support, providing fast and reliable data access.

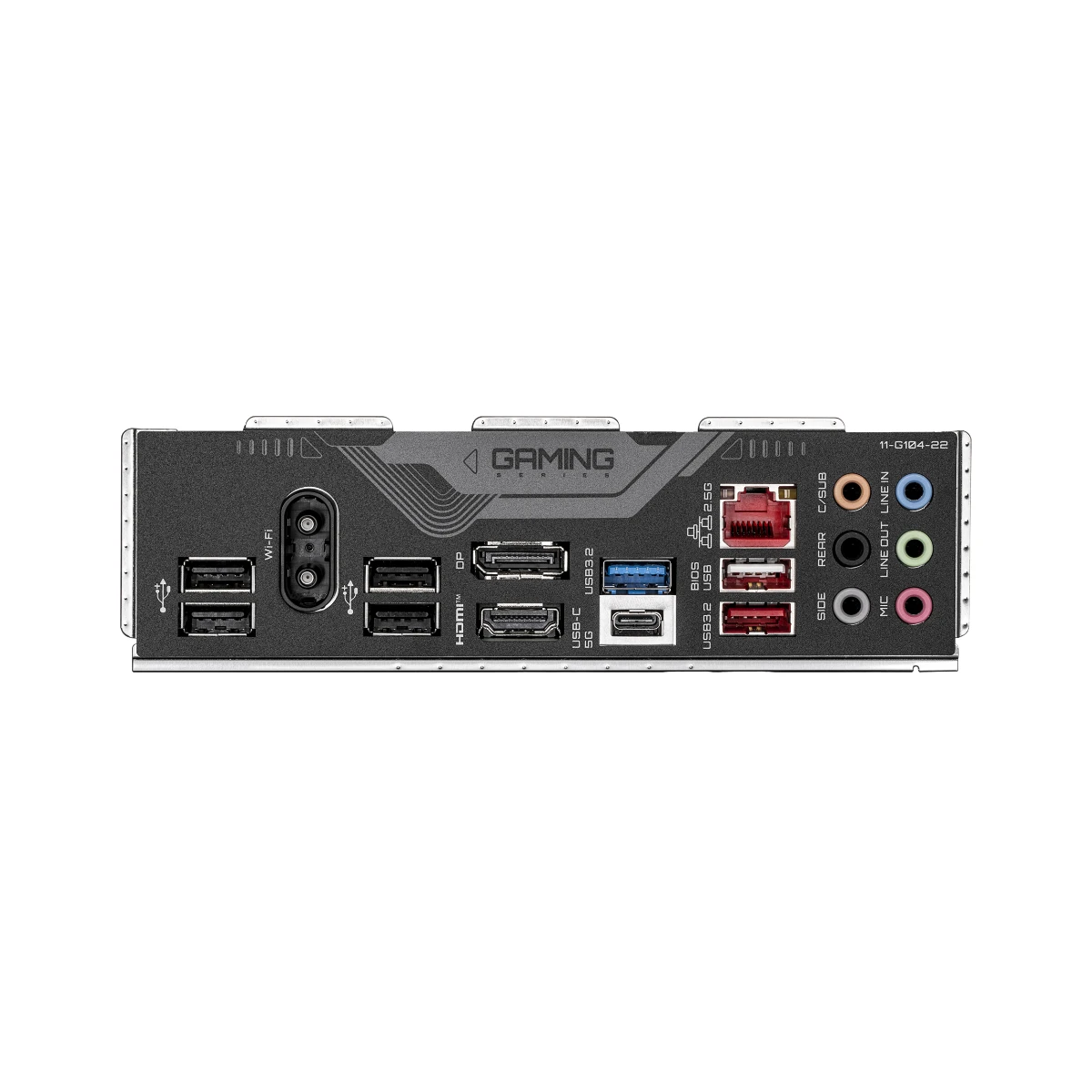

Graphics and expansion are fully equipped with 1 x PCIe 5.0 x16 slot, 2 x PCIe 3.0 x16 slots, 1 x PCIe 3.0 x1 slot, integrated Intel® HD Graphics with 1 x DisplayPort (4096x2304@60Hz) and 1 x HDMI port (4096x2160@60Hz). Networking includes Realtek 2.5GbE LAN, Intel® Wi-Fi 6E AX210, Bluetooth® 5.3, and multiple USB ports including USB Type-C® 3.2 Gen 2. Audio is powered by Realtek® Audio CODEC, supporting 2/4/5.1/7.1-channel output for immersive sound.

System monitoring and control are enhanced via the iTE® I/O Controller Chip with voltage, temperature, fan, and water-cooling flow monitoring. BIOS features include 256 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, and Smart Backup, while software support is provided via GIGABYTE Control Center (GCC). Compact yet feature-rich, B760 GAMING X WIFI6E GEN5 delivers high reliability, performance, and expandability, making it the ideal choice for gamers and creators in Global.
