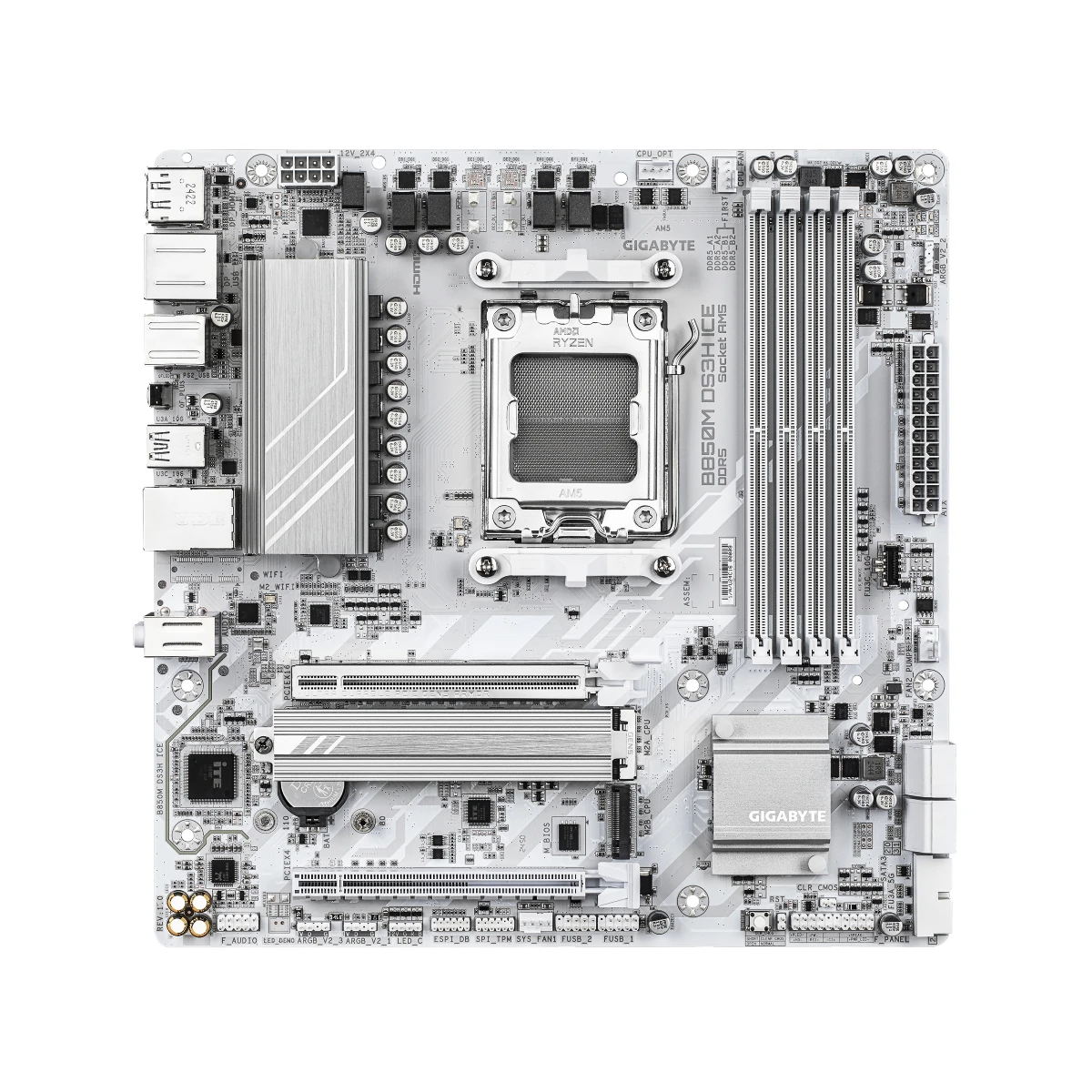

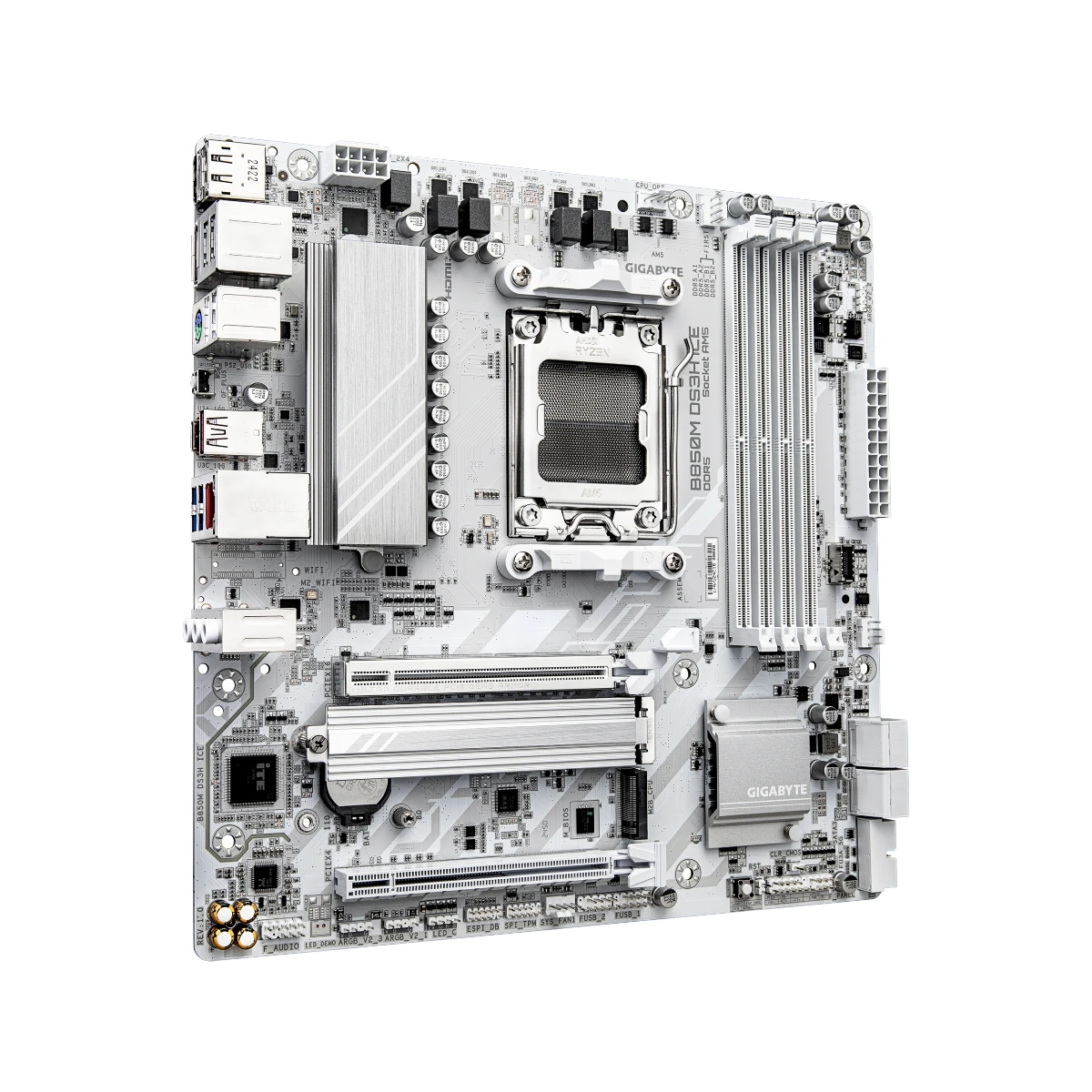

Gigabyte B850M DS3H ICE is a reliable and feature-rich Micro-ATX motherboard designed to support the latest AMD Ryzen™ 9000, 8000, and 7000 Series Processors through the AMD Socket AM5 platform. Powered by the AMD B850 chipset, this motherboard delivers a balanced combination of performance, stability, and modern connectivity for gaming PCs, productivity systems, and compact workstation builds in Global. The board features 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory, with speeds reaching DDR5 8200(OC) for high-performance computing tasks. With Dual Channel Memory Architecture and support for AMD EXPO™ and XMP memory modules, users can easily optimize memory settings for improved speed and efficiency.
For graphics and display flexibility, B850M DS3H ICE includes integrated graphics support with 1 x HDMI port capable of 4096x2160@60 Hz resolution and 2 x DisplayPorts supporting 3840x2160@144 Hz. This allows users to run up to triple displays simultaneously, making it ideal for multitasking environments, creative workstations, and immersive gaming setups. Expansion capabilities include 1 x PCI Express x16 slot supporting PCIe 5.0 x16 mode with compatible Ryzen™ processors, delivering high bandwidth for modern GPUs or NVMe storage devices. An additional PCIe 3.0 x16 slot running at x4 provides further expansion for add-in cards and other peripherals.
Storage performance is enhanced with 2 x M.2 connectors supporting high-speed PCIe 5.0 and PCIe 4.0 NVMe SSDs, along with 4 x SATA 6Gb/s connectors for additional drives. The motherboard also supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices and RAID 0, RAID 1, and RAID 10 for SATA storage devices, providing flexibility for performance, redundancy, or data protection configurations. High-speed connectivity is supported with Realtek® 2.5GbE LAN, ensuring stable and fast wired networking for gaming and online workloads.

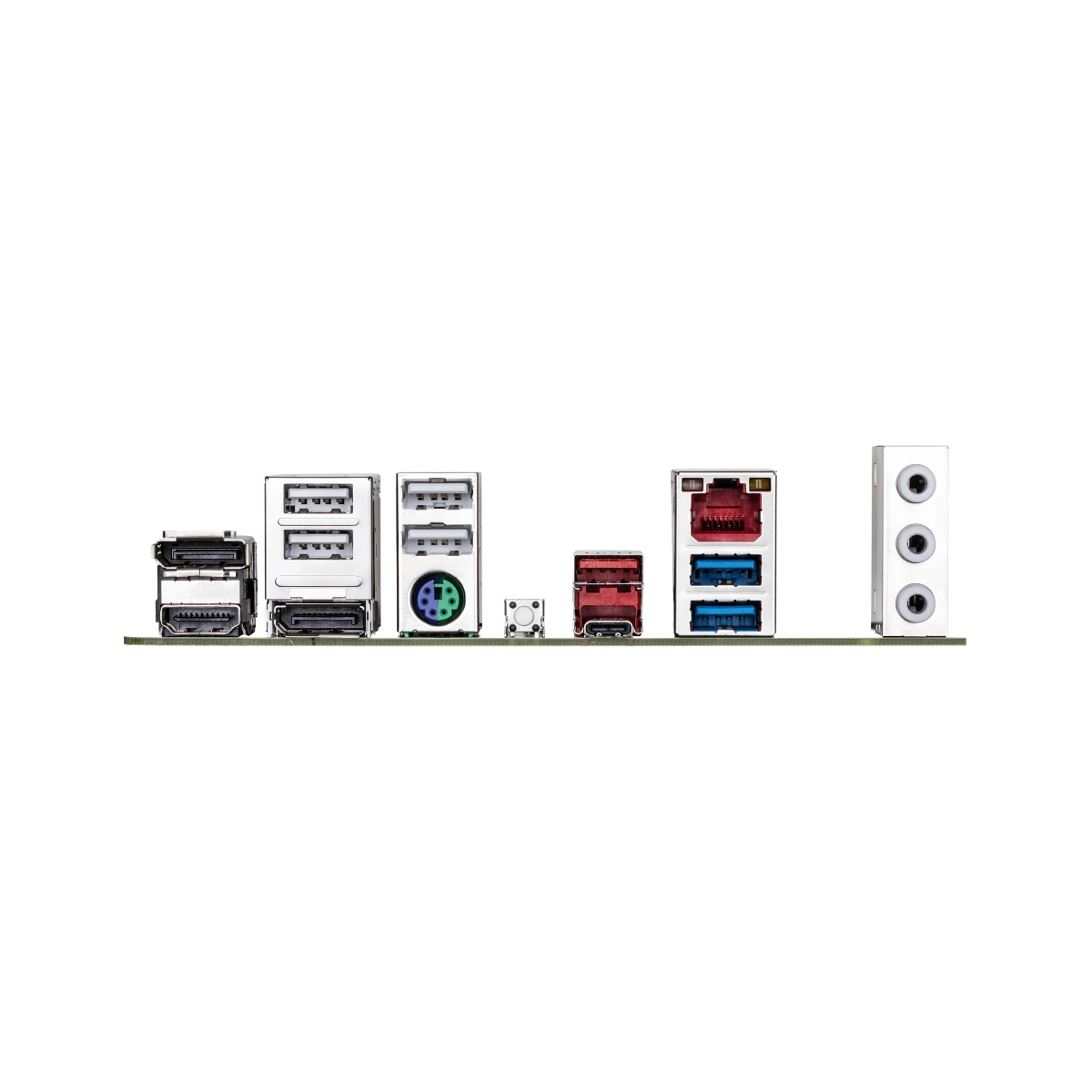

Connectivity options include USB 3.2 Gen 2 Type-C®, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, and USB 2.0 ports, providing broad compatibility for modern devices and peripherals. The board also features Realtek® High Definition Audio with 2/4/5.1/7.1-channel audio support for immersive sound quality. Additional features such as Q-Flash, Q-Flash Plus, Smart Backup, and support for GIGABYTE Control Center (GCC) simplify system updates, customization, and management. With modern DDR5 memory support, high-speed storage capabilities, and reliable networking, B850M DS3H ICE offers a strong foundation for compact and efficient PC builds in Global.
