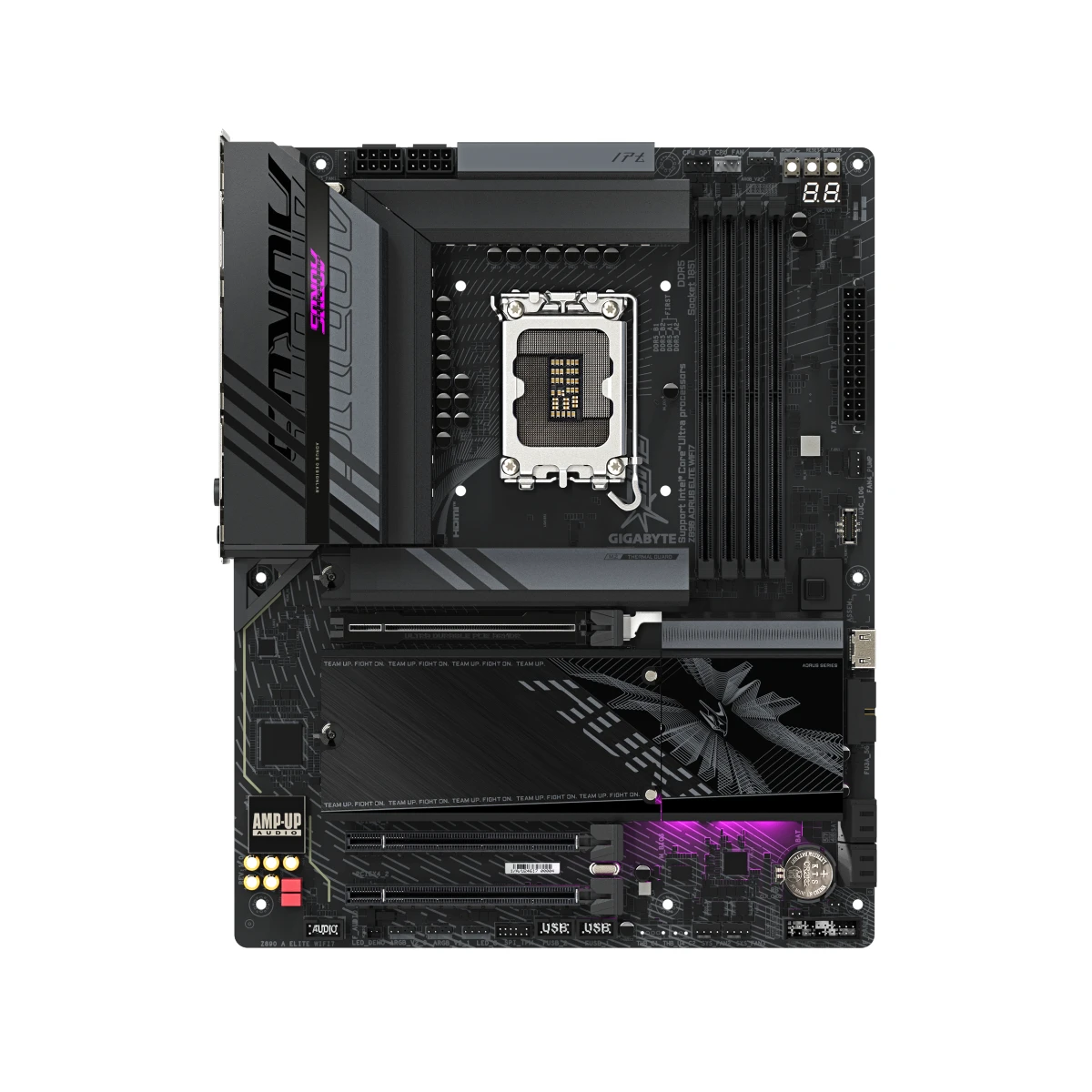

Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Gaming Motherboard is engineered to deliver exceptional gaming performance, powerful expansion capabilities, and next-generation connectivity for enthusiasts building high-end systems in Global. Built on the advanced Intel® Z890 Express Chipset and featuring the LGA1851 socket, the motherboard supports the latest Intel® Core™ Ultra Processors, creating a powerful foundation for modern gaming PCs, content creation systems, and overclocking builds.
Memory performance is a major highlight, with support for ultra-fast DDR5 9200(O.C) memory along with multiple high-frequency options including 9066(O.C), 8933(O.C), 8800(O.C), 8600(O.C), 8400(O.C), 8266(O.C), 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400, 6200, 6000, 5800, and 5600MT/s memory modules. With 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory and Dual channel memory architecture, users can experience improved system responsiveness and faster data processing. The board also supports Extreme Memory Profile (XMP) and CUDIMM memory module technology for optimized memory overclocking.
For graphics expansion, the motherboard features 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16, providing maximum bandwidth for the latest high-performance GPUs. Additional expansion includes 2 x PCI Express x16 slots supporting PCIe 4.0 and running at x4, allowing users to install capture cards, storage cards, or other performance accessories.
Storage capabilities are designed for speed and flexibility with 4 x M.2 connectors and 4 x SATA 6Gb/s connectors supporting ultra-fast NVMe SSDs including PCIe 5.0 x4/x2 SSD support and PCIe 4.0 x4/x2 SSD support. Advanced storage options include RAID 0, RAID 1, RAID 5, and RAID 10 support for both NVMe SSD storage devices and SATA storage devices, ensuring performance, redundancy, and reliability.
Networking is powered by Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) and cutting-edge wireless connectivity with MediaTek Wi-Fi 7 MT7925 or Realtek® Wi-Fi 7 RTL8922AE, supporting 802.11a, b, g, n, ac, ax, be, 2.4/5/6 GHz carrier frequency bands, and BLUETOOTH 5.4 for high-speed wireless connectivity.

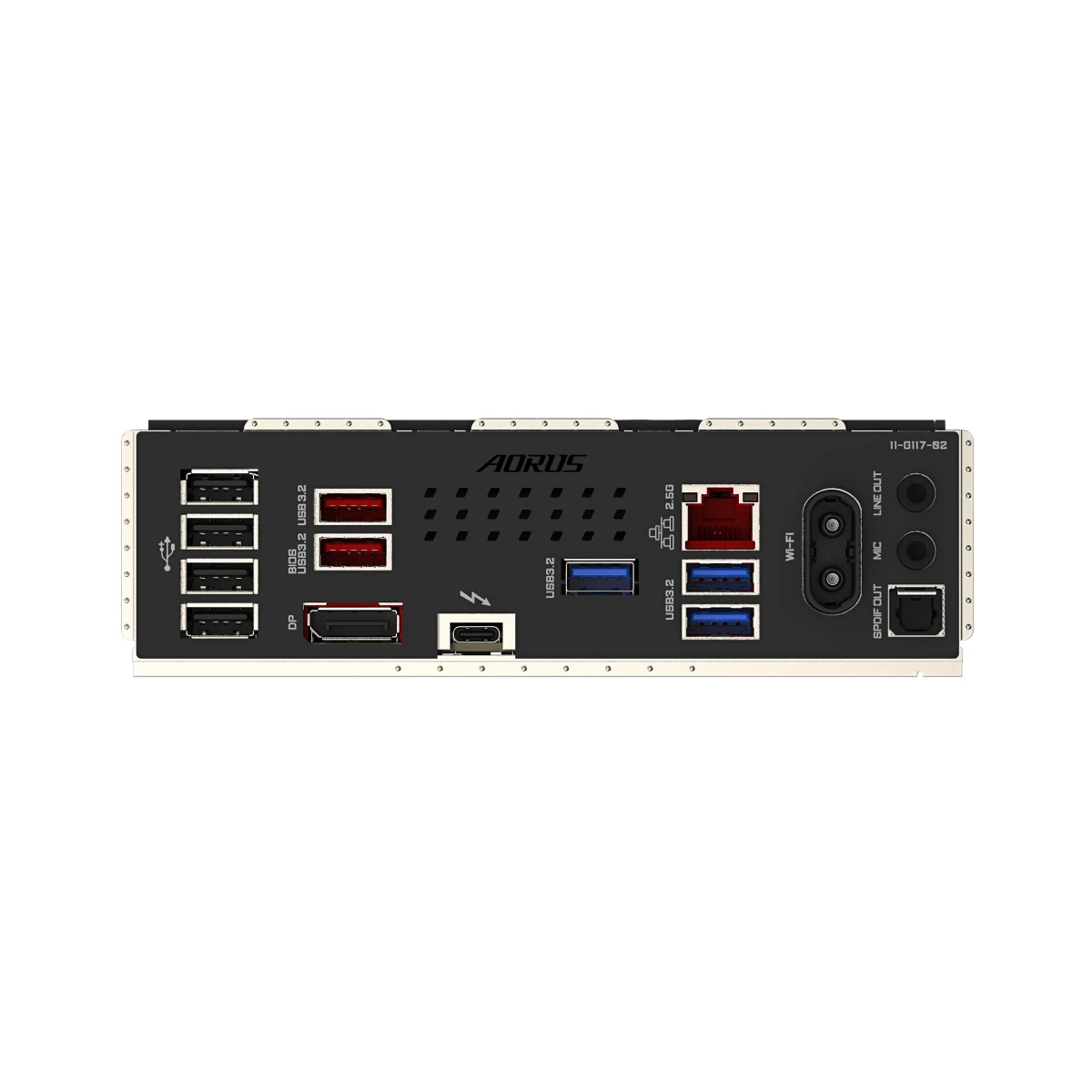

Display connectivity includes Intel® Thunderbolt™ 4 (USB4® USB Type-C® port) supporting resolutions up to 5120x2880@60 Hz and 3840x2160@240 Hz, along with DisplayPort 2.1 supporting 4096x2304@60 Hz and HDMI 1.4 via the front HDMI port. The motherboard supports triple-display setups, ideal for immersive gaming or multi-monitor productivity.
Audio performance is powered by the premium Realtek® ALC1220 CODEC delivering 2/4/5.1/7.1-channel High Definition Audio with S/PDIF Out support. Thermal performance and system stability are maintained through advanced H/W Monitoring features including Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, and Fan speed control.
Additional features include GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup, enabling easy BIOS updates, system tuning, and improved reliability. With its robust ATX Form Factor; 30.5cm x 24.4cm, premium build quality, and advanced technologies, the Gigabyte Z890 AORUS ELITE WIFI7 is an outstanding motherboard choice for gamers and creators building powerful PCs in Global.
