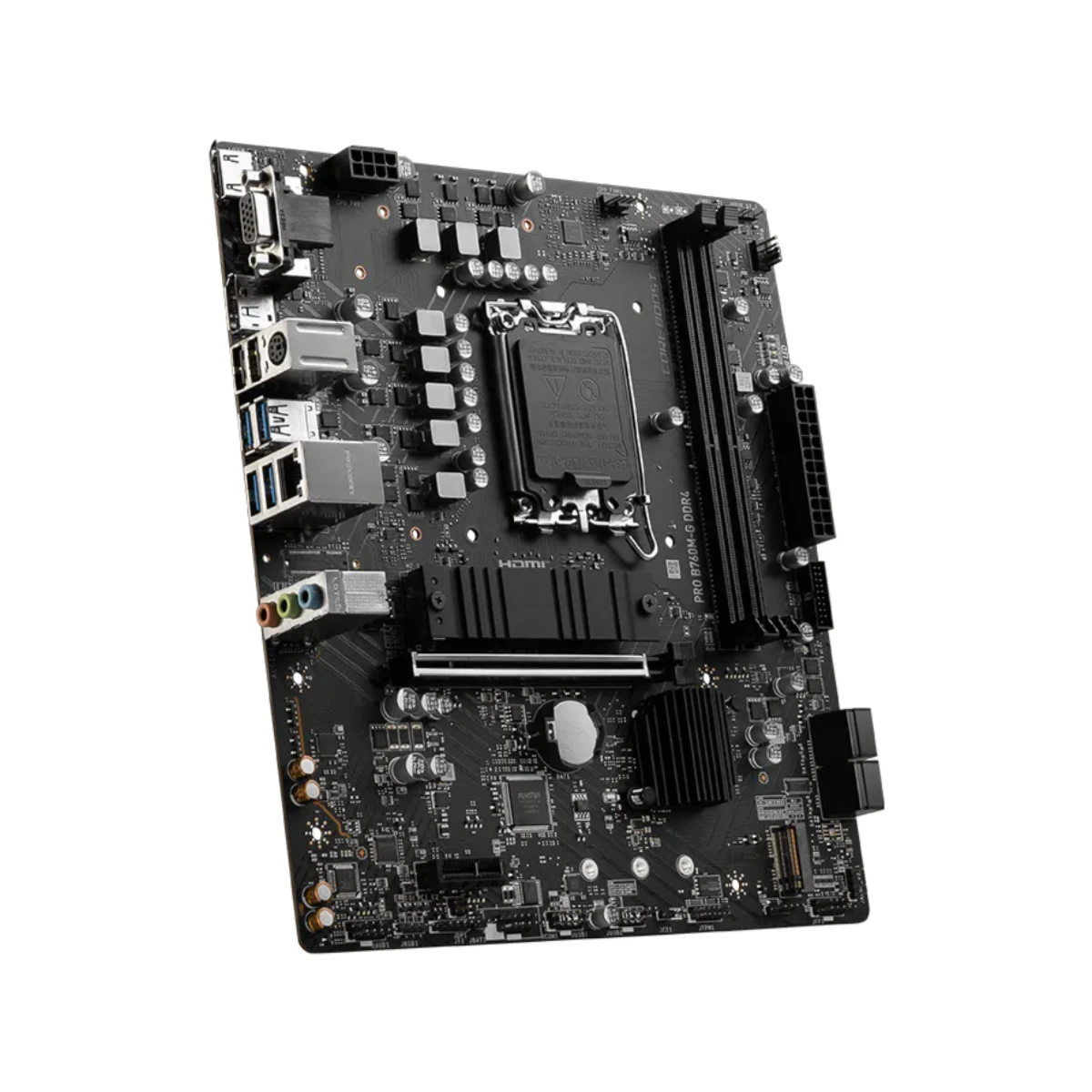

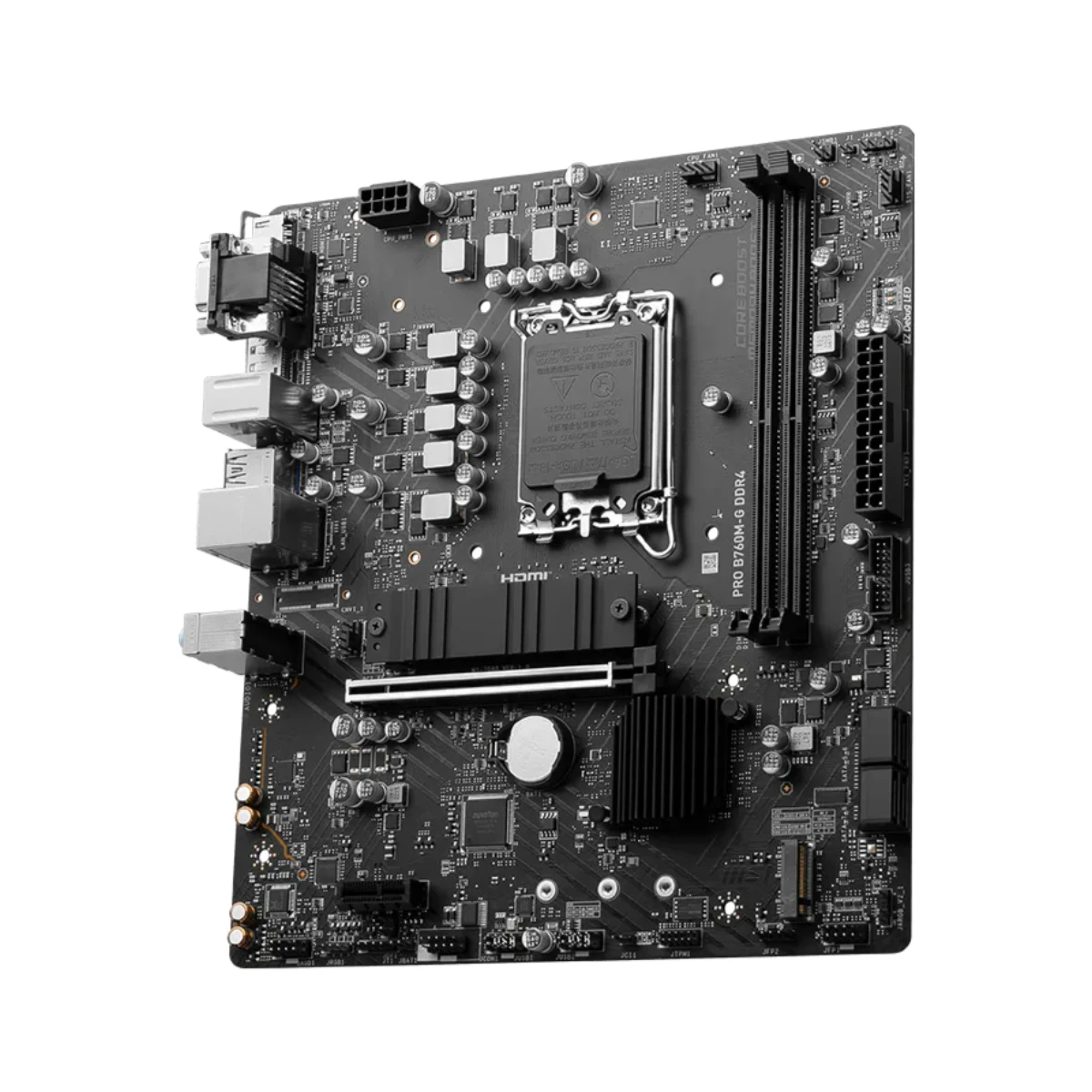

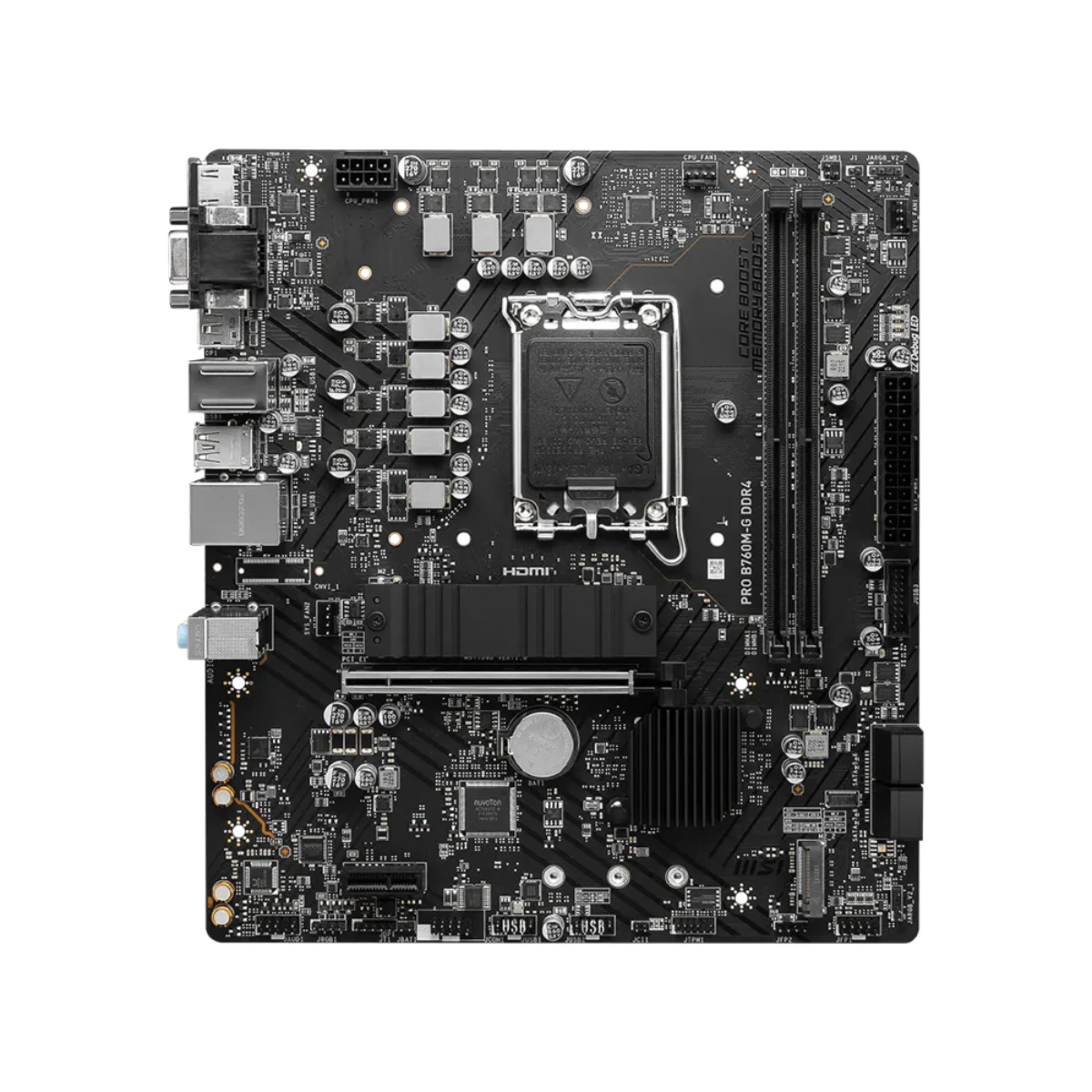

The MSI PRO B760M-G DDR4 Micro-ATX motherboard offers a reliable platform for office, gaming, and home workstation builds in Global. Powered by the Intel® B760 chipset and LGA1700 socket, it supports 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, providing excellent performance for mainstream applications.
Memory support includes 2× DDR4 DIMM slots, allowing up to 64GB of dual-channel memory with speeds up to 4800MHz (OC) using Intel® XMP for overclocking flexibility. Non-ECC unbuffered modules ensure broad compatibility for most consumer-grade RAM kits.
The board offers a versatile graphics setup with HDMI 2.1, DisplayPort 1.4, and VGA outputs, supporting 4K resolutions and multiple monitors when used with a compatible processor featuring integrated graphics. Expansion is handled via one PCIe x16 slot and one PCIe x1 slot, both supporting PCIe 4.0 for fast GPU and peripheral performance.
Storage is flexible, with two M.2 slots (one CPU-side PCIe 4.0 x4, one chipset-side PCIe 4.0 x4/SATA) and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations. Audio is powered by Realtek® ALC897 7.1-channel HD codec, delivering high-definition sound for games and media.
Connectivity includes Realtek® RTL8125B 2.5Gb LAN for fast wired networking and multiple USB options, including USB 2.0 and USB 3.2 Gen 1 5Gbps ports for peripherals and storage devices. Built-in EZ Debug LEDs simplify troubleshooting during assembly.
With a compact Micro-ATX form factor (220 × 243.84mm), robust build quality, and essential features like addressable RGB headers, TPM 2.0 support, and MSI control utilities, the PRO B760M-G DDR4 is an excellent choice for budget-conscious builders and professionals seeking reliability and expandability in Global.
